Battery contact, 5-way, right-angle SMT
The 009155005301006: Gold-plated contacts rated at 0.118" (3.00mm) pitch — the spring beam wipes the battery pad on insertion and holds positive contact under vibration.

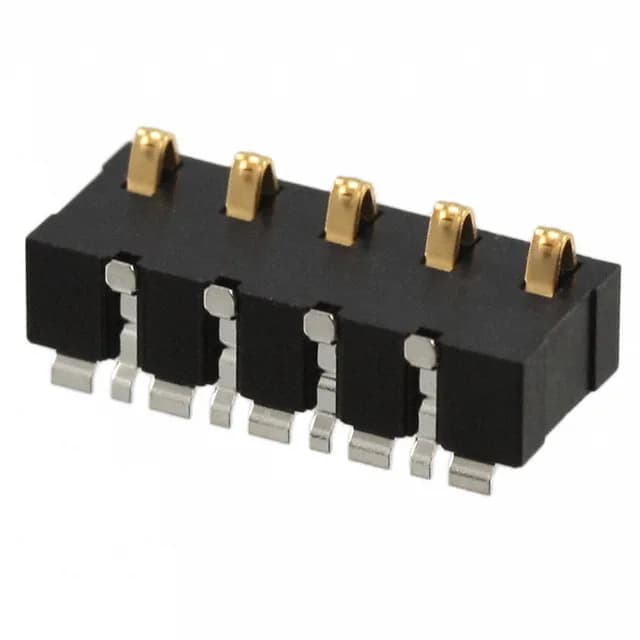

KYOCERA AVX 009155005301006 Spring-Loaded Battery Contact
MPN009155005301006
Active
KYOCERA AVX MOBO® 9155-300 battery contact, order code 009155005301006, 5 positions, single row, 0.118" (3.00mm) pitch, gold finish, surface-mount right-angle, solder termination.
$2.3300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMOBO® 9155-300
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MOBO® 9155-300 |
| Mounting | Surface Mount, Right Angle |
| Connector type | Battery Contact |
| Positions | 5 |
| Pitch | 0.118\" (3.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Contact finish | Gold |
| Rows | 1 |
| Contact finish thickness | 15.0µin (0.38µm) |
Product details
Frequently asked questions
What is the pitch on this spring-loaded contact?
Pitch is 0.118" (3.00mm).
What series does 009155005301006 belong to?
It is part of the KYOCERA AVX MOBO® 9155-300 series.
