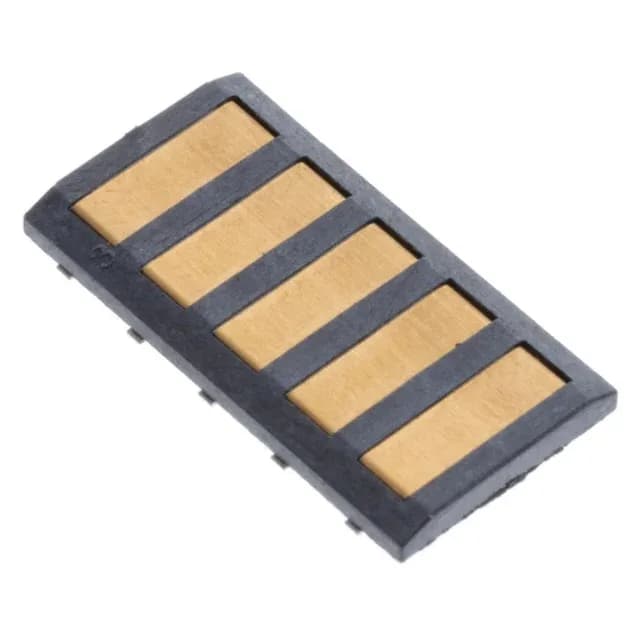

KYOCERA AVX 9155-400 series battery contact, order code 009155005402006, 5 positions, single row, 0.157" (4.00mm) pitch, gold-plated phosphor bronze contacts, surface-mount termination.
| Parameter | Value |
|---|---|
| Series | 9155-400 |
| Mounting | Surface Mount |
| Connector type | Battery Contact |
| Positions | 5 |
| Material | Phosphor Bronze |
| Pitch | 0.157\" (4.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Contact finish | Gold |
| Rows | 1 |
| Contact finish thickness | 16.0µin (0.41µm) |
The 009155005402006 is the 5-position member of KYOCERA AVX's 9155-400 spring-loaded battery contact line. Gold-plated phosphor bronze contacts on a 0.157" (4.00mm) pitch, surface-mount termination — the spring action maintains contact pressure against the battery cell without a secondary latch.
The 009155005402006 carries a 0.157" (4.00mm) pitch.
