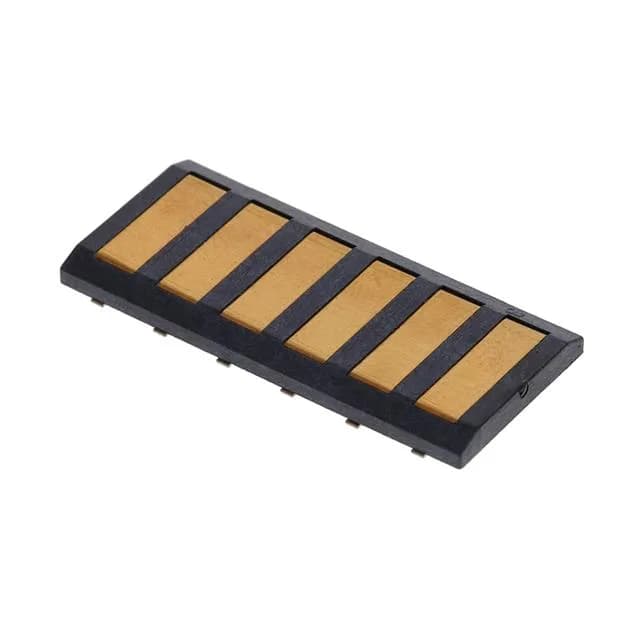

KYOCERA AVX 9155-400 battery contact, order code 009155006402006, 6 positions, single row, 0.157" (4.00mm) pitch, gold-plated contacts 16.0µin, surface-mount, phosphor bronze.
| Parameter | Value |
|---|---|
| Series | 9155-400 |
| Mounting | Surface Mount |
| Connector type | Battery Contact |
| Positions | 6 |
| Material | Phosphor Bronze |
| Pitch | 0.157\" (4.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Contact finish | Gold |
| Rows | 1 |
| Contact finish thickness | 16.0µin (0.41µm) |
The 009155006402006 is the 6-contact member of KYOCERA AVX's 9155-400 battery contact line, a single-row spring-loaded contact array on 0.157" (4.00mm) pitch. Gold plating at 16.0µin (0.41µm) over phosphor bronze keeps the contact resistance stable across repeated battery insertions; the surface-mount package suits pick-and-place assembly.
The part is ROHS3 compliant per the manufacturer's listing. Additional compliance documentation (REACH, UL, IEC) is not confirmed in the available records.
