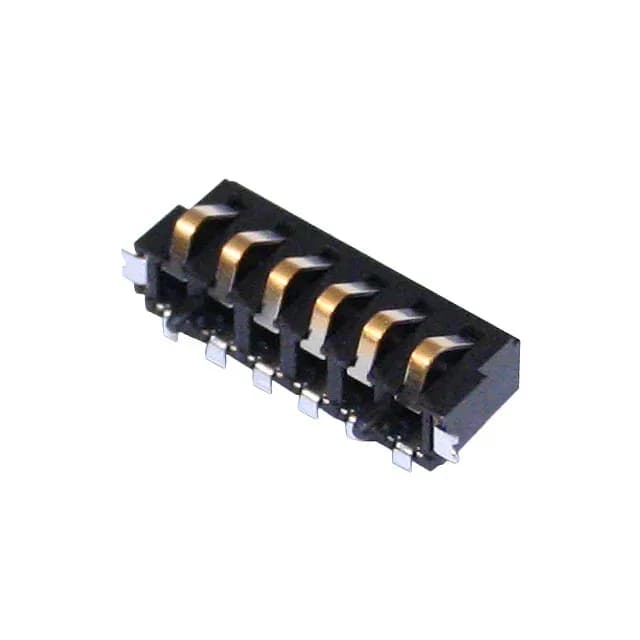

KYOCERA AVX MOBO® 9155-800 battery contact, order code 009155006852006, 6 positions, single row, 0.079" (2.00mm) pitch, gold-plated beryllium copper contact, surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | MOBO® 9155-800 |
| Mounting | Surface Mount, Right Angle |
| Connector type | Battery Contact |
| Positions | 6 |
| Material | Beryllium Copper |
| Pitch | 0.079\" (2.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Contact finish | Gold |
| Rows | 1 |
| Contact finish thickness | 16.0µin (0.41µm) |
The 009155006852006 is the 6-position member of the KYOCERA AVX MOBO® 9155-800 battery contact line. It carries a gold-plated beryllium copper contact, mounts surface-mount right-angle, and is rated for 0.079" (2.00mm) pitch.
