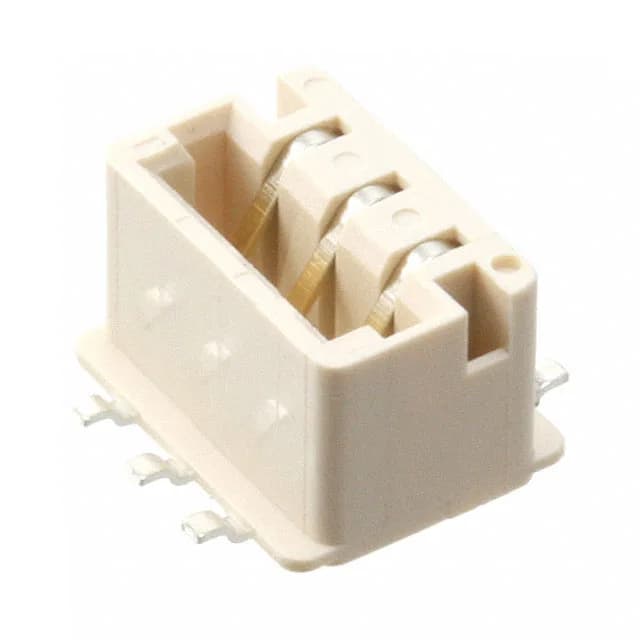

KYOCERA AVX 009159003501906
MPN009159003501906
Active
$0.8000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 9159 |
| Mounting | Surface Mount, Bottom Entry, Through Board |
| Connector type | Receptacle |
| Voltage rating | 300V |
| Current rating | 2A per Contact |
| Operating temperature | -40°C ~ 120°C |
| Housing color | White |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free |
| Pitch | 0.079\" (2.00mm) |
| Style | Board to Board - Card Edge |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | 0.80mm or 1.60mm Thick PCB |
| Termination | Solder |
| Mating cycles | 10 |
| Contact finish | Gold |
| Positions | 3 |
