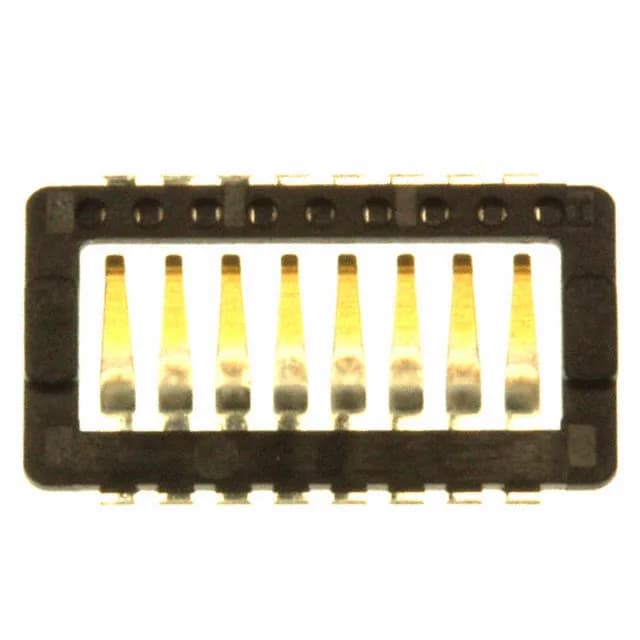

KYOCERA AVX 9258 SOLO compression contact, order code 009258008008063, 8 positions, single row, 0.039" (1.00mm) pitch, gold finish 10.0µin (0.25µm), surface mount, solder termination.
| Parameter | Value |
|---|---|
| Series | 9258 SOLO |
| Mounting | Surface Mount |
| Connector type | Compression Contact, Non-Gendered |
| Positions | 8 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Contact finish | Gold |
| Rows | 1 |
| Contact finish thickness | 10.0µin (0.25µm) |
The 009258008008063 is the 8-contact member of the KYOCERA AVX 9258 SOLO compression contact line, a non-gendered spring-loaded interconnect for board-to-board or board-to-device stacking. It carries a gold finish of 10.0µin (0.25µm) on the contact surface, operates at 0.039" (1.00mm) pitch, and is rated for surface-mount solder termination.
The pitch is 0.039" (1.00mm) and the contact finish is gold with a thickness of 10.0µin (0.25µm).
