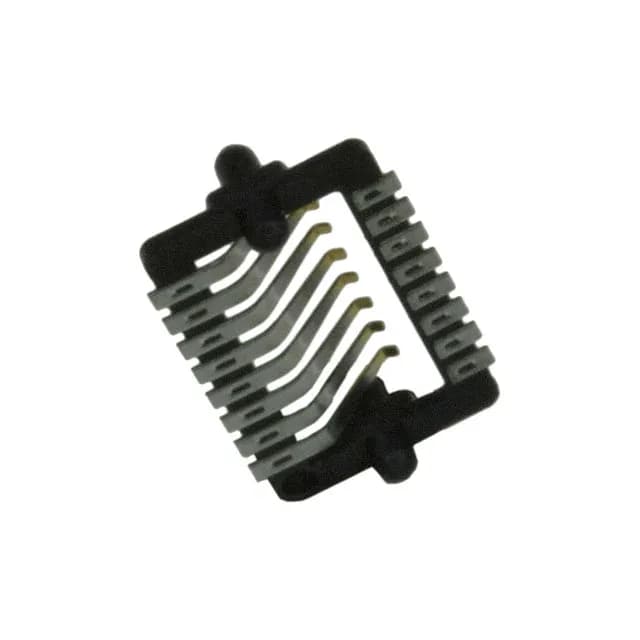

KYOCERA AVX 9258 SOLO compression contact, non-gendered, order code 009258008008064, 8 contacts, single row, 1.00 mm pitch, gold finish, 10.0µin (0.25µm) contact finish thickness, surface mount, solder termination.
| Parameter | Value |
|---|---|
| Series | 9258 SOLO |
| Mounting | Surface Mount |
| Connector type | Compression Contact, Non-Gendered |
| Positions | 8 |
| Pitch | 0.039\" (1.00mm) |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Contact finish | Gold |
| Rows | 1 |
| Contact finish thickness | 10.0µin (0.25µm) |
The 009258008008064 is an 8-contact member of the KYOCERA AVX 9258 SOLO series of non-gendered compression contacts. It carries gold finish on the contact surface with 10.0µin (0.25µm) thickness and mounts surface-mount at 1.00 mm pitch.
Gold finish at 10.0µin (0.25µm) supports repeated compression cycles without fretting corrosion.
The pitch is 0.039" (1.00mm).
