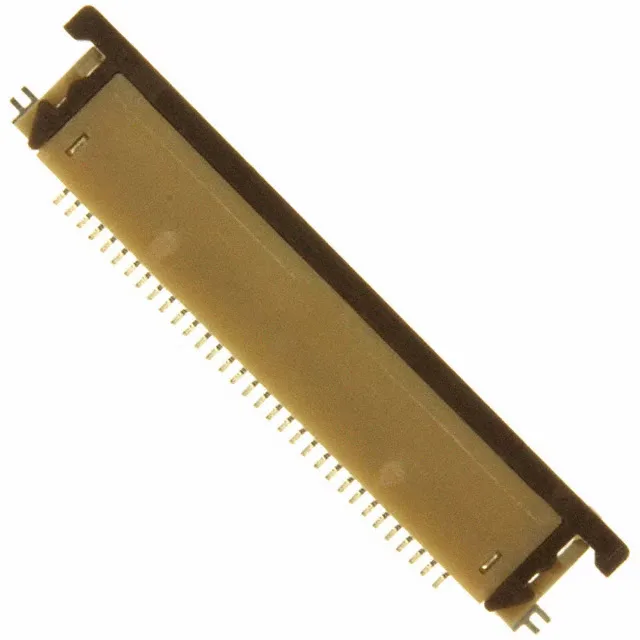

KYOCERA AVX 086210033340800A+
MPN086210033340800A+
Active
CONN FFC BOTTOM 33POS 0.50MM R/A
$1.72Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series6210, Kyocera
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 6210, Kyocera |
| Mounting | Surface Mount, Right Angle |
| Cable end type | Tapered |
| Flat flex type | FFC, FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 50V |
| Current rating | 0.4A |
| Operating temperature | -40°C ~ 85°C |
| Contact material | Copper Alloy |
| Housing material | Plastic |
| Height above board | 0.079\" (2.00mm) |
| Pitch | 0.020\" (0.50mm) |
All specifications
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Contact finish | Tin Copper |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 33 |
