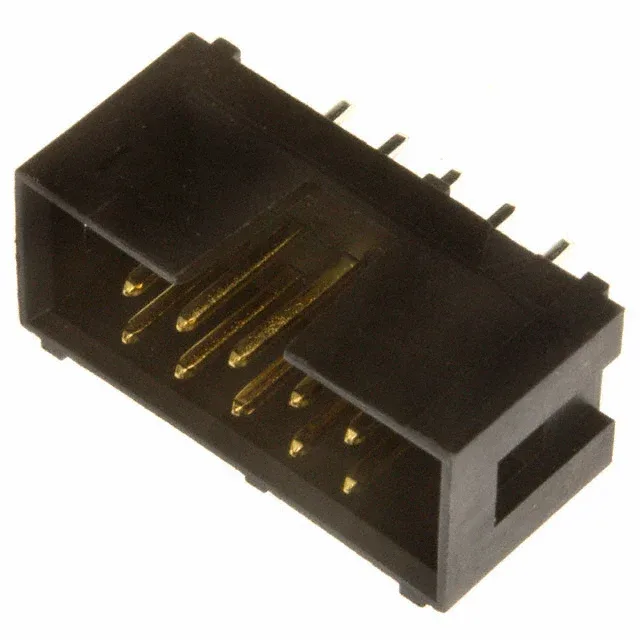

KYOCERA AVX 8383010000010
MPN8383010000010
Active
CONN HEADER VERT 10POS 2.54MM
$3.75Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series8383
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 8383 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 350V |
| Current rating | 1A |
| Contact material | Brass |
| Insulation color | Beige |
| Insulation height | 0.376\" (9.55mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
All specifications
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Keying Slot |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact finish - post | Nickel |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.242\" (6.15mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
