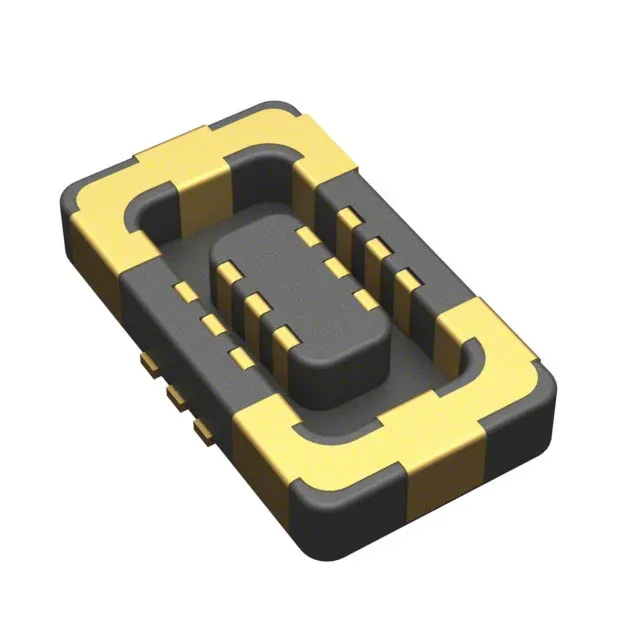

KYOCERA AVX — Mezzanine & Stacking Connectors

KYOCERA AVX Mezzanine & Stacking Connectors — 6 part numbers with specifications and datasheets. Filter by key specs and request a quote on IC Source Direct.

Height Above Board
0.071" (1.80mm) · 0.287" (7.30mm) · 0.023" (0.59mm) · 0.443" (11.25mm)
Mated Stacking Heights
1.9mm ~ 2.1mm · 17mm, 19mm · 0.7mm · 15mm, 25mm
Number of Positions
16 · 40 · 8 (4 + 4 Power) · 60
Connector Type
Stacking Compression · Plug, Floating · Plug, Outer Shroud Contacts · Receptacle, Floating
Base Product Number
009158 · 147129 · 245655 · 245843
Pitch
0.039" (1.00mm) · 0.020" (0.50mm) · 0.014" (0.35mm)
Contact Finish
Gold · -
Contact Finish Thickness
10.0µin (0.25µm) · -
