LEMO FGG.00.302.CLAD35Z
MPNFGG.00.302.CLAD35Z
Active

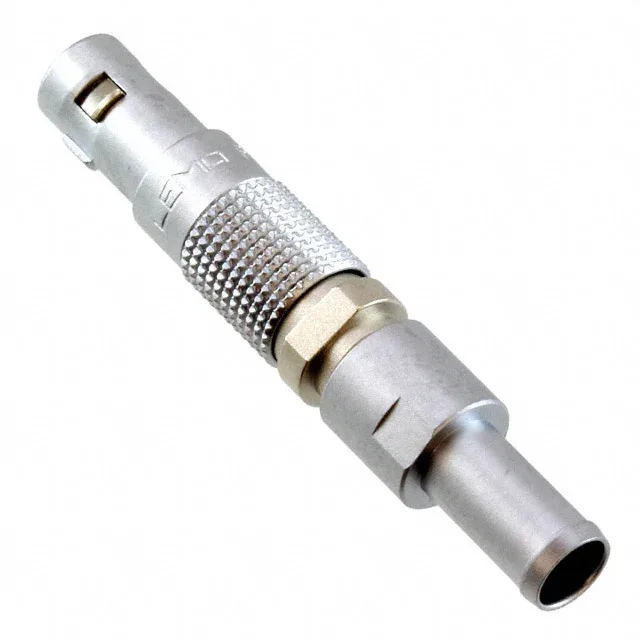

CONN PLUG MALE 2P GOLD SLDR CUP
$31.84Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series00B
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 00B |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug, Male Pins |
| Fastening type | Push-Pull |
| Current rating | 5A |
| IP rating | IP50 - Dust Protected |
| Cable opening | 0.106\" ~ 0.138\" (2.70mm ~ 3.50mm) |
| Operating temperature | -55°C ~ 250°C |
| Color | Silver |
| Shell material | Brass |
| Insert material | Polyetheretherketone (PEEK) |
| Contact material | Brass |
All specifications
| Parameter | Value |
|---|---|
| Primary material | Metal |
| Backshell material, plating | Brass, Chrome |
| Material flammability rating | UL94 V-0 |
| Package | Bulk |
| Features | Backshell |
| Shielding | Shielded |
| Orientation | G |
| Termination | Solder Cup |
| Shell finish | Chrome |
| Positions | 2 |
| Shell size - insert | 302 |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | 39.4µin (1.00µm) |
