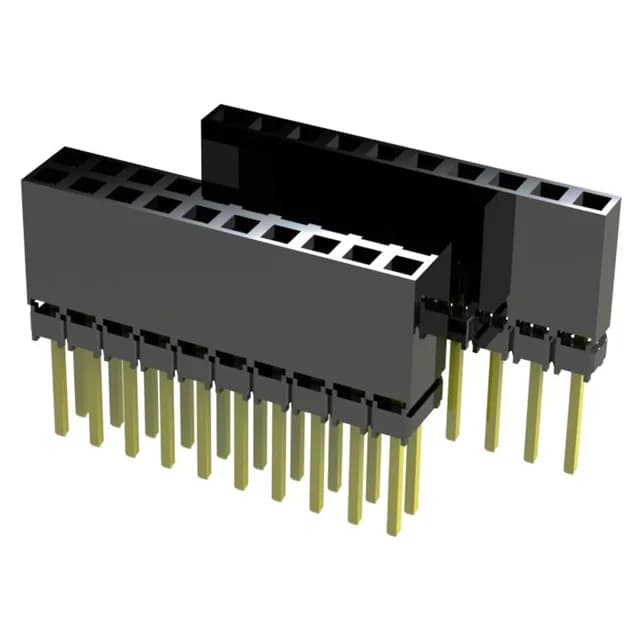

Major League Electronics BSSH-120-D-16-T-LF — Female Socket Headers

Major League Electronics BSSH-120-D-16-T-LF

MPNBSSH-120-D-16-T-LF
Active
$2.7300Ref. price · indicative, final on quote
Major League Electronics BSSH-120-D-16-T-LF datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

BSSH-120-D-16-T-LF key specifications
ParameterValue
SeriesBSSH-1
TypeForked
MountingThrough Hole
Connector typeReceptacle
Fastening typePush-Pull
Current rating3A
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.735\" (18.67mm)
Insulation materialPolyamide (PA6T), Nylon 6T
StyleBoard to Board

All specifications

BSSH-120-D-16-T-LF additional specifications
ParameterValue
PackageBag
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions40
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.190\" (4.83mm)
Contact finish - matingTin
