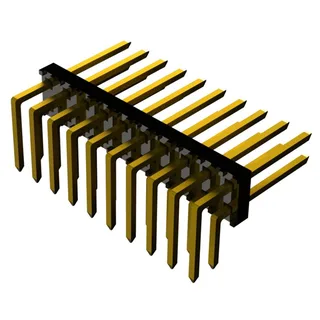

TSHR-105-D-04-A-GT-LF
Major League Electronics
10Board to BoardTSHR-1
Ref. price$0.5000
Lead time on requestGet quote ›
Major League Electronics TSHR Series
3 variants · Major League Electronics
About the Major League Electronics TSHR Series
The Major League Electronics TSHR Series series groups 3 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. Every variant in the range shares a common applications of -, connector type of Header and contact finish - post of Tin. Variants differ by contact finish - mating, contact finish thickness - mating and contact length - mating, so you can match the exact contact finish - mating your application requires using the selection guide below. All listed Major League Electronics TSHR Series part numbers are active and orderable.
Select a variant by
- Contact finish - mating
- Gold · Tin
- Contact finish thickness - mating
- - · 10.0µin (0.25µm)
- Contact length - mating
- 0.230\" (5.84mm) · 0.318\" (8.08mm)
- Contact length - post
- 0.090\" (2.29mm) · 0.102\" (2.60mm) · 0.190\" (4.83mm)
- Positions
- 10 · 12 · 16
Shared specifications
- Applications
- -
- Connector type
- Header
- Contact finish - post
- Tin
- Contact finish thickness - post
- -
- Contact material
- Phosphor Bronze
- Contact shape
- Square
- Current rating
- 3A
- Fastening type
- Push-Pull
- Features
- -
- Gender
- Male Pin
- Ingress protection
- -
- Insulation color
- Black
Variant comparison
| Parameter | TSHR-105-D-04-A-GT-LF | TSHR-106-D-02-A-T-LF | TSHR-108-D-04-B-T-LF |
|---|---|---|---|
| Contact finish - mating | Gold | Tin | Tin |
| Contact finish thickness - mating | 10.0µin (0.25µm) | - | - |
| Contact length - mating | 0.230\" (5.84mm) | 0.230\" (5.84mm) | 0.318\" (8.08mm) |
| Contact length - post | 0.190\" (4.83mm) | 0.090\" (2.29mm) | 0.102\" (2.60mm) |
| Positions | 10 | 12 | 16 |
Request a quote on any Major League Electronics TSHR Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Major League Electronics TSHR Series variants differ?
- Major League Electronics TSHR Series part numbers differ by contact finish - mating, contact finish thickness - mating, contact length - mating and contact length - post. Use the selection guide above to pick by contact finish - mating.
- How many Major League Electronics TSHR Series part numbers are listed?
- 3 Major League Electronics TSHR Series part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Major League Electronics TSHR Series?
- Request a quote (RFQ) for any Major League Electronics TSHR Series part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
