Major League Electronics TSHR-108-D-04-B-T-LF — Pin Headers

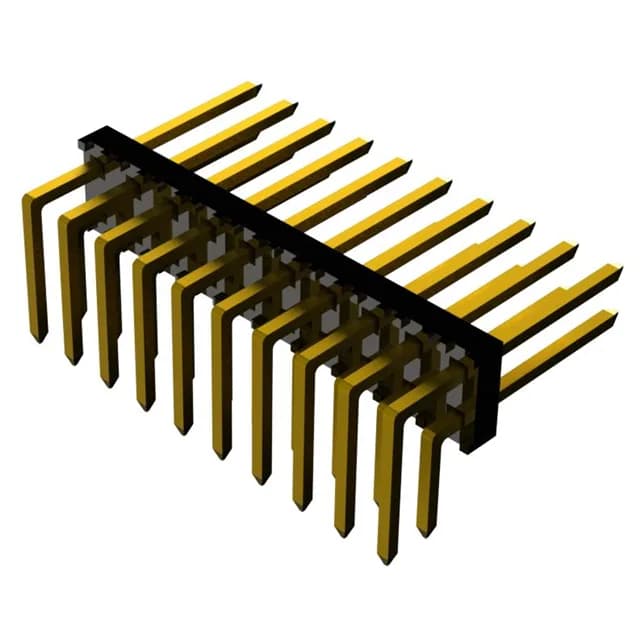

Major League Electronics TSHR-108-D-04-B-T-LF

MPNTSHR-108-D-04-B-T-LF
Active
$0.5300Ref. price · indicative, final on quote
Major League Electronics TSHR-108-D-04-B-T-LF datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

TSHR-108-D-04-B-T-LF key specifications
ParameterValue
SeriesTSHR-1
TypeMale Pin
MountingThrough Hole, Right Angle
Connector typeHeader
Fastening typePush-Pull
Current rating3A
Operating temperature-40°C ~ 105°C
Contact materialPhosphor Bronze
Insulation colorBlack
Insulation height0.240\" (6.10mm)
Insulation materialPolyamide (PA6T), Nylon 6T
StyleBoard to Board

All specifications

TSHR-108-D-04-B-T-LF additional specifications
ParameterValue
PackageBag
ShroudingUnshrouded
TerminationSolder
Contact shapeSquare
Rows2
Pitch0.100\" (2.54mm)
Positions16
Row spacing - mating0.100\" (2.54mm)
Contact finish - postTin
Contact length - post0.102\" (2.60mm)
Contact finish - matingTin
Contact length - mating0.318\" (8.08mm)
