METZ CONNECT USA Inc. 31020106
MPN31020106
Active

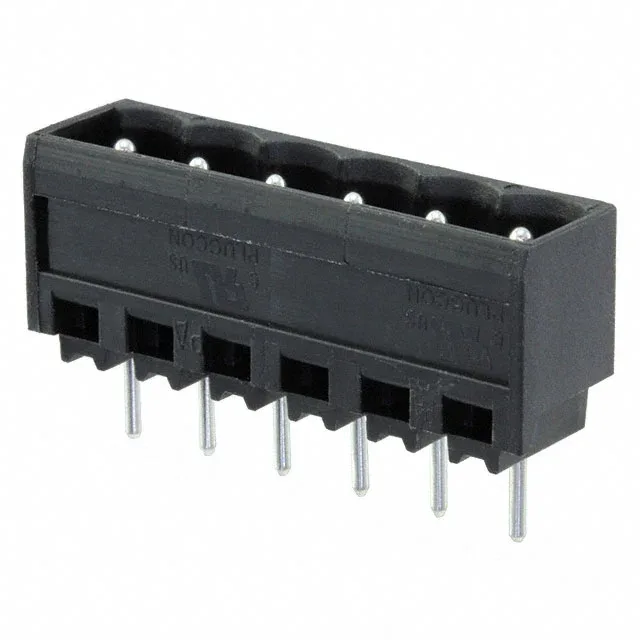

SHROUDED HEADER, VERTICAL, PCB,
$2.26Ref. price · indicative, final on quote
RoHSRoHS Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Contact material | Copper Zinc |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.480\" (12.20mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.205\" (5.21mm) |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Silver |
