METZ CONNECT USA Inc. 31030102
MPN31030102
Active

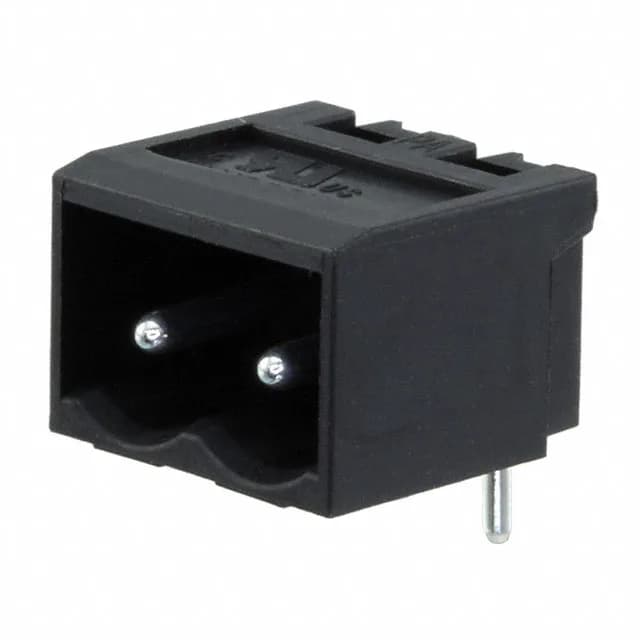

SHROUDED HEADER, RIGHT ANGLE, PC
$0.8100Ref. price · indicative, final on quote
RoHSRoHS Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 15 A |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Contact material | Copper Zinc |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.327\" (8.30mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Manufacturer | METZ CONNECT USA Inc. |
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | 90°, Right Angle |
| Contact tail length | 0.142\" (3.60mm) |
| Positions | 2 |
| Positions per level | 2 |
| Contact mating finish | Nickel |
