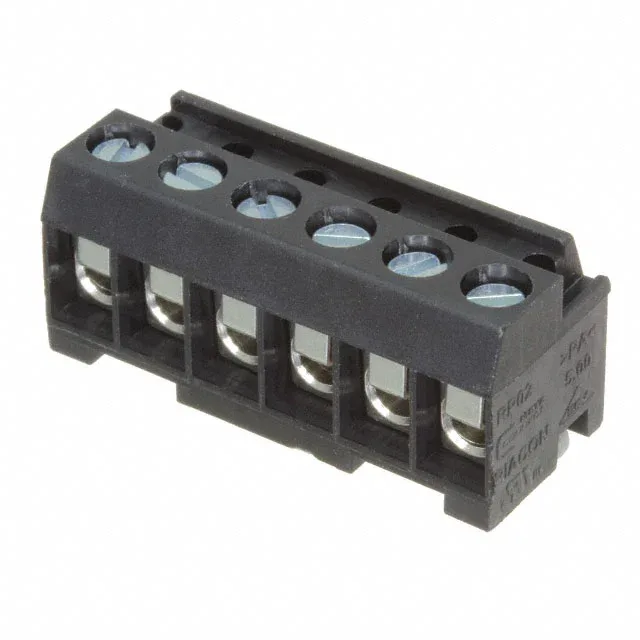

METZ CONNECT USA Inc. 31107106
MPN31107106
Active
SCREW TYPE TERMINAL BLOCK, PLUG,
$4.31Ref. price · indicative, final on quote
RoHSRoHS Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug for Unshrouded Header |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Plug wire entry | 90° |
| Wire gauge or range - AWG | 12-28 AWG |
| Wire gauge or range - mm2 | 0.08-2.5mm² |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Contact material | Copper Tin |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Insulation height | 0.504\" (12.80mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Screw size | M3 |
| Torque - screw | 0.68 Nm (6 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Leaf Spring, Wire Guard |
| Positions | 6 |
| Positions per level | 6 |
| Contact mating finish | Tin |
