METZ CONNECT USA Inc. 31157103
MPN31157103
Active

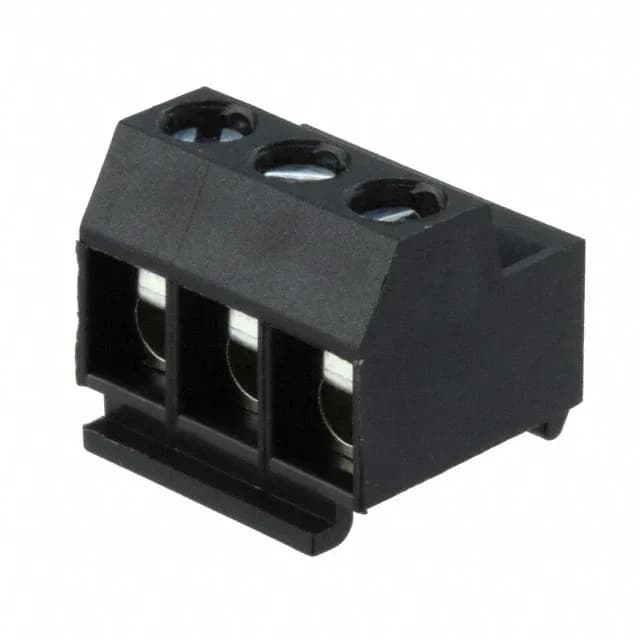

SCREW TYPE TERMINAL BLOCK, PLUG,
$1.4900Ref. price · indicative, final on quote
RoHSRoHS Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug for Unshrouded Header |
| Mounting | Panel Mount, Snap-In |
| Voltage - UL | 300 V |
| Current - UL | 5 A |
| IP rating | IP20 |
| Plug wire entry | 90° |
| Wire gauge or range - AWG | 14-28 AWG |
| Wire gauge or range - mm2 | 0.08-2.5mm² |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA66), Nylon 6/6 |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Screw size | M3 |
| Torque - screw | 0.5 Nm (4.4 Lb-In) |
| Number of levels | 1 |
| Termination style | Screw - Leaf Spring, Wire Guard |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
