METZ CONNECT USA Inc. 31191103
MPN31191103
Active

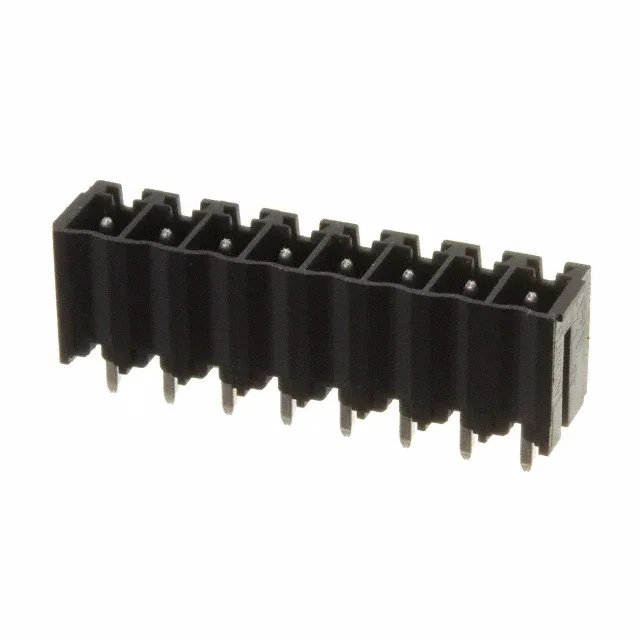

SHROUDED HEADER, VERTICAL, THR,
$0.9Ref. price · indicative, final on quote
RoHSRoHS Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Header, Male Pins, Shrouded (4 Side) |
| Mounting | Through Hole |
| Voltage - UL | 300 V |
| Current - UL | 8 A |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Contact material | Copper Alloy |
| Housing material | Polyamide (PA6T), Nylon 6T |
| Insulation height | 0.362\" (9.20mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.150\" (3.81mm) |
| Package | Bulk |
All specifications
| Parameter | Value |
|---|---|
| Number of levels | 1 |
| Termination style | Solder |
| Header orientation | Vertical |
| Contact tail length | 0.128\" (3.25mm) |
| Positions | 3 |
| Positions per level | 3 |
| Contact mating finish | Tin |
