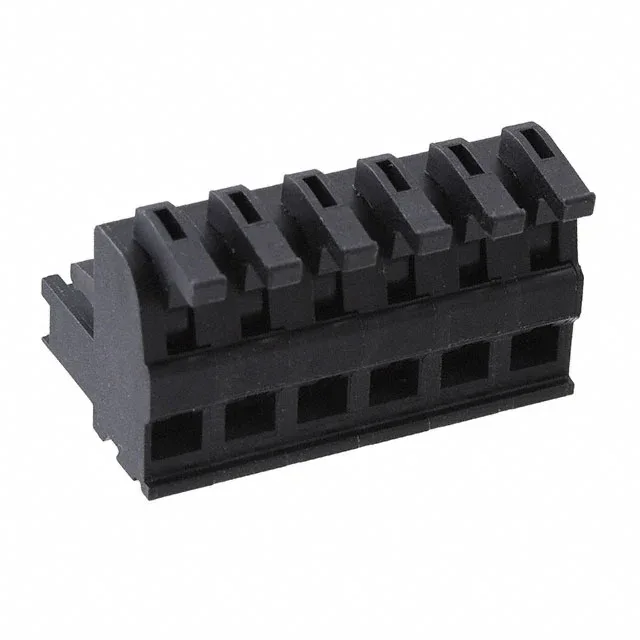

SPRING CLAMP TERMINAL BLOCK, PLU
$5.15Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
- New & original stockTraceable channels only — no mixed lots, no re-taped reels.
- Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
- Photo-verified countsEvery line counted and photographed before the box closes.
- PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting type | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| Ingress protection | IP20 |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 16-28 AWG |
| Wire gauge or range - mm2 | 0.08-1mm² |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Housing material | Polyamide (PA46), Nylon 4/6 |
| Insulation height | 0.610\" (15.49mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Package | Bulk |
| Features | Lever Actuated, Retention Latches (Non-Wire Side) |
| Number of levels | 1 |
| Termination style | Screwless - Spring Cage, Tension Clamp |
| Positions | 6 |
| Positions per level | 6 |
Sourcing this connector
METZ CONNECT USA Inc. ASP0460622 is available through IC Source Direct’s Shenzhen interconnect channel. Submit an RFQ with your required quantity and timeline; we return a firm quote covering MOQ, lead time, condition, and unit price — typically within one business day.
Need a match by specification instead of MPN? Provide pitch, pin count, current rating, mounting style, and operating temperature. We cross-reference against METZ CONNECT USA Inc. and other authorised lines, returning datasheet-verified alternatives. Attach a full BOM for multi-brand consolidation into one shipment.
