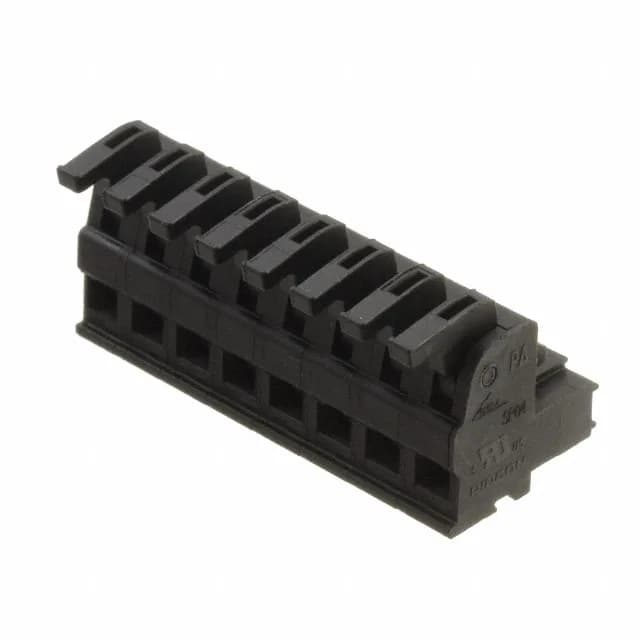

METZ CONNECT USA Inc. ASP0460822
MPNASP0460822
Active
$6.6600Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Plug, Female Sockets |
| Mounting | Free Hanging (In-Line) |
| Voltage - UL | 300 V |
| Current - UL | 10 A |
| IP rating | IP20 |
| Plug wire entry | 180° |
| Wire gauge or range - AWG | 16-28 AWG |
| Wire gauge or range - mm2 | 0.08-1mm² |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Housing material | Polyamide (PA46), Nylon 4/6 |
| Insulation height | 0.610\" (15.49mm) |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Pitch | 0.200\" (5.08mm) |
| Features | Lever Actuated, Retention Latches (Non-Wire Side) |
| Package | Bulk |
| Manufacturer | METZ CONNECT USA Inc. |
| Number of levels | 1 |
| Termination style | Screwless - Spring Cage, Tension Clamp |
| Positions | 8 |
| Positions per level | 8 |
