METZ CONNECT USA Inc. AST0550502
MPNAST0550502
Active

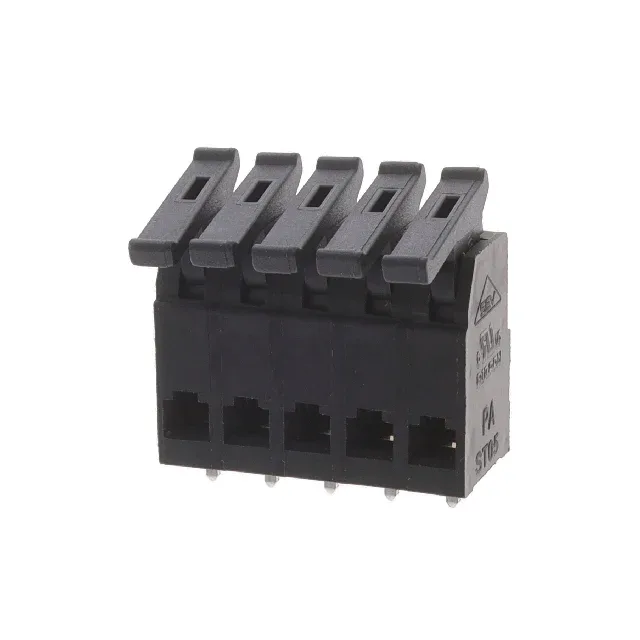

TERM BLK 5POS SIDE ENTRY 5MM PCB
$5.24Ref. price · indicative, final on quote
RoHSRoHS Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Through Hole |
| Voltage | 300 V |
| Current | 12 A |
| Wire gauge | 12-28 AWG |
| Wire termination | Screwless - Spring Cage, Tension Clamp |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Housing material | Polyamide (PA66), Nylon 6/6 |
| Clamp material - plating | Steel |
| Contact material - plating | Copper Alloy - Tin Plated |
| Pitch | 0.197\" (5.00mm) |
| Package | Bulk |
| Features | Lever Actuated |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 5 |
