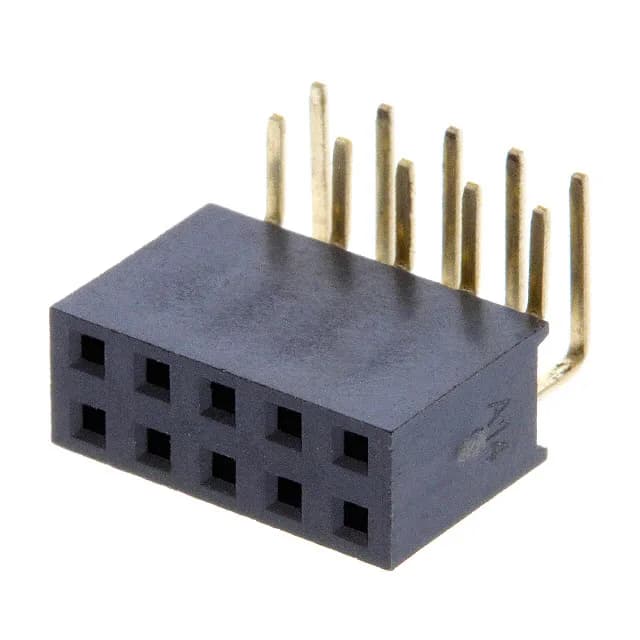

METZ CONNECT USA Inc. FR20205HBDN
MPNFR20205HBDN
Active
RECEPTACLE, THR, DUAL ROW, .100"
$0.7400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Female Socket |
| Mounting | Through Hole, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| IP rating | IP00 |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper |
| Insulation color | Black |
| Insulation height | 0.197\" (5.00mm) |
| Insulation material | Polyethylene Terephthalate (PET), Polyester |
| Style | Board to Board |
| Package | Tray |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Row spacing - mating | 0.100\" (2.54mm) |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Gold |
| Contact finish thickness - mating | Flash |
