METZ CONNECT USA Inc. PR20C04VBDN
MPNPR20C04VBDN
Active

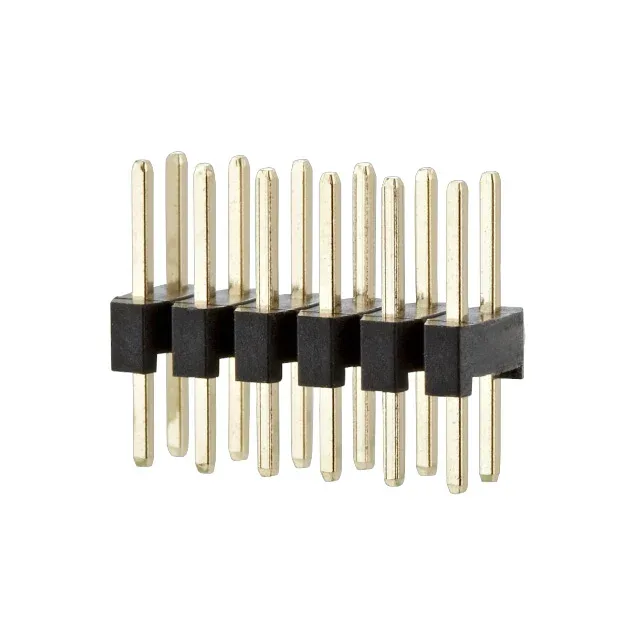

PIN HEADER, THR, DUAL ROW, 2.00
$0.23Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.079\" (2.00mm) |
| Insulation material | Polyethylene |
| Style | Board to Board |
| Package | Bag |
| Shrouding | Unshrouded |
All specifications
| Parameter | Value |
|---|---|
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 8 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.343\" (8.70mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.154\" (3.91mm) |
| Contact finish thickness - mating | Flash |
