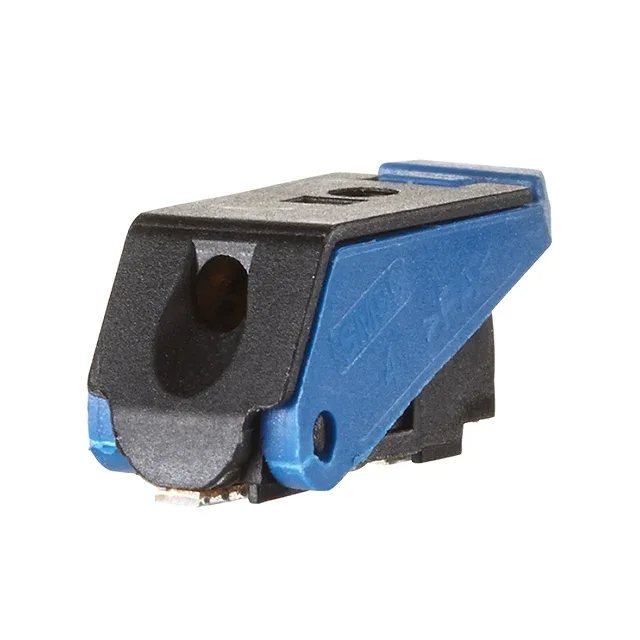

METZ CONNECT USA Inc. SM99S01VBNN05G7
MPNSM99S01VBNN05G7
Active
TERM BLOCK 1POS SIDE ENTRY SMD
$1.26Ref. price · indicative, final on quote
RoHSRoHS Compliant
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount |
| Voltage | 300 V |
| Current | 9 A |
| Wire gauge | 16-24 AWG |
| Wire termination | Screwless - Spring Cage, Tension Clamp |
| Operating temperature | -40°C ~ 105°C |
| Color | Blue |
| Housing material | Polyamide (PA6T), Nylon 6T |
| Clamp material - plating | Steel |
| Contact material - plating | Copper Alloy - Tin Plated |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Push Button Actuated |
| Number of levels | 1 |
| Mating orientation | Horizontal with Board |
| Positions per level | 1 |
