Mill-Max Manufacturing Corp. 0285-0-15-15-16-27-10-0 — PCB Pin Sockets

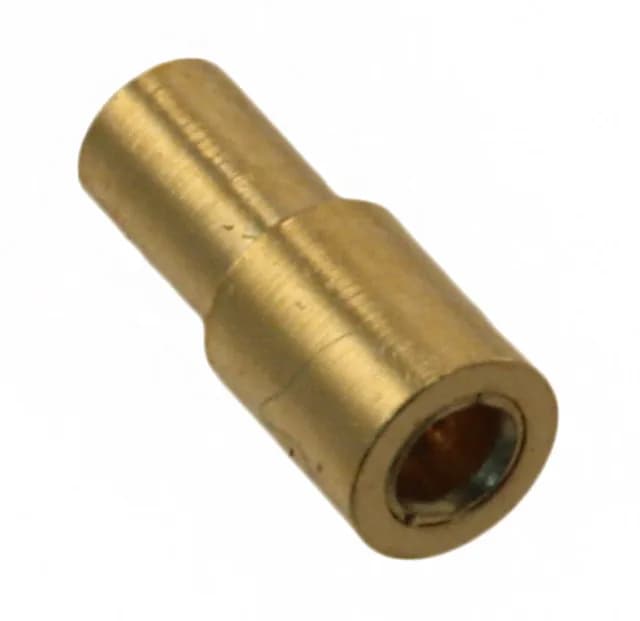

Mill-Max 0285-0-15-15-16-27-10-0 PCB Pin Socket

MPN0285-0-15-15-16-27-10-0
Active

Mill-Max 0285 series pin socket, order code 0285-0-15-15-16-27-10-0, accepts 0.022"~0.034" pin diameter, 30.0µin gold contact finish, beryllium copper contact, solder termination, no tail, bulk package.

$0.4700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series0285
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

0285-0-15-15-16-27-10-0 specifications
ParameterValue
Series0285
Tail typeNo Tail
Mounting hole diameter0.065\" (1.65mm)
Operating temperature-55°C ~ 125°C
Socket depth0.180\" (4.57mm)
Contact materialBeryllium Copper
PackageBulk
TerminationSolder
Contact finishGold
Flange diameter0.080\" (2.03mm)
Length - overall0.180\" (4.57mm)
Pin hole diameter0.051\" (1.30mm)
Accepts pin diameter0.022\" ~ 0.034\" (0.56mm ~ 0.86mm)
Accepts square pin size0.025\" (0.64mm)
Contact finish thickness30.0µin (0.76µm)

Product details

Contact system and plating

The 0285-0-15-15-16-27-10-0: It accepts round pins from 0.022" to 0.034" diameter and square pins up to 0.025" per side, covering common D-sub and header pin sizes.

Board fit and solder termination

The socket has no tail — the 0.180" overall length matches the socket depth, so the solder joint sits flush with the board surface. Mounting hole diameter is 0.065". Termination is solder only; the pin hole diameter of 0.051" gives clearance for the mating pin while keeping the solder fillet consistent.
