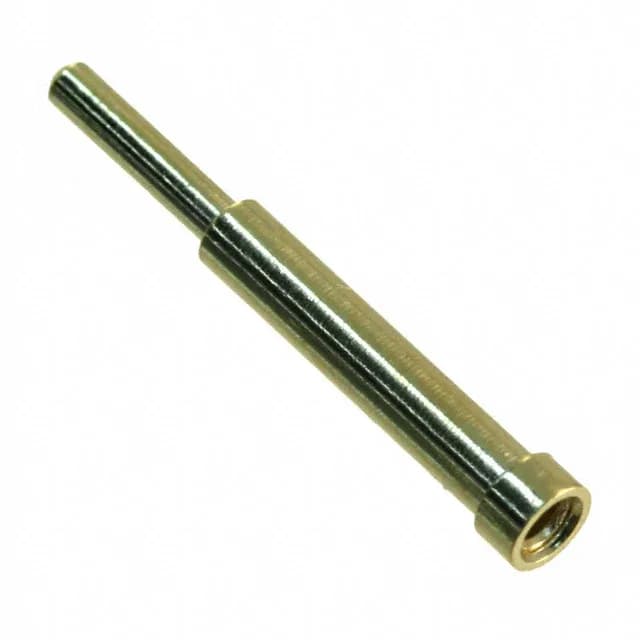

Mill-Max 0301 series PCB pin socket, order code 0301-1-15-15-47-27-10-0, 0.040" (1.02mm) tail diameter, 0.250" (6.35mm) socket depth, beryllium copper contact, 30.0µin (0.76µm) gold plating, solder termination, Bulk package.
| Parameter | Value |
|---|---|
| Series | 0301 |
| Tail type | Standard Tail |
| Mounting hole diameter | 0.042\" (1.07mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.250\" (6.35mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Tail diameter | 0.040\" (1.02mm) |
| Contact finish | Gold |
| Flange diameter | 0.078\" (1.98mm) |
| Length - overall | 0.537\" (13.64mm) |
| Pin hole diameter | 0.051\" (1.30mm) |
| Accepts pin diameter | 0.025\" ~ 0.037\" (0.64mm ~ 0.94mm) |
| Accepts square pin size | 0.025\" (0.64mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
The 0301-1-15-15-47-27-10-0 is a Mill-Max 0301 series PCB pin socket accepting round pins from 0.025" to 0.037" (0.64mm to 0.94mm) diameter and square pins up to 0.025" (0.64mm) across the flats. The beryllium copper contact carries 30.0µin (0.76µm) gold plating and is rated for solder termination through a 0.042" (1.07mm) mounting hole, operating from -55°C to 125°C.
