Mill-Max Manufacturing Corp. 0322-0-15-15-34-27-10-0 — PCB Pin Sockets

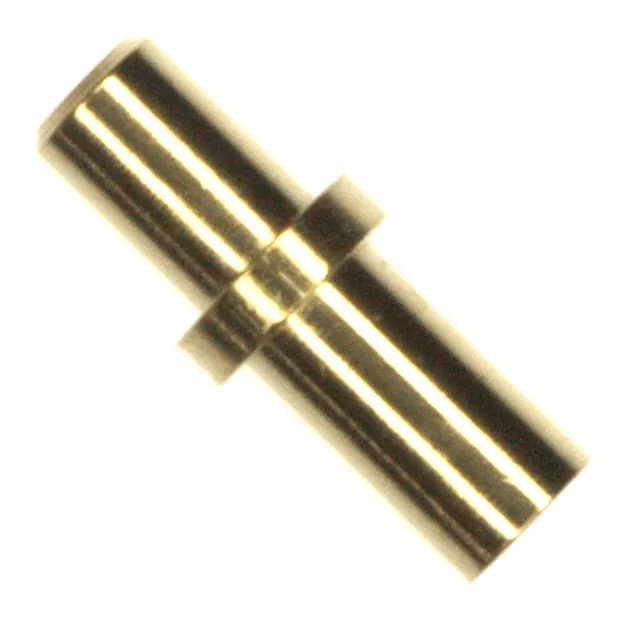

Mill-Max Manufacturing Corp. 0322-0-15-15-34-27-10-0

MPN0322-0-15-15-34-27-10-0
Active

CONN PIN RCPT .032-.046 SOLDER

$0.7700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series0322
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

0322-0-15-15-34-27-10-0 specifications
ParameterValue
Series0322
Tail typeNo Tail
Mounting hole diameter0.089\" (2.26mm)
Operating temperature-55°C ~ 125°C
Socket depth0.220\" (5.59mm)
Contact materialBeryllium Copper
PackageBulk
TerminationSolder
Contact finishGold
Flange diameter0.125\" (3.18mm)
Length - overall0.317\" (8.05mm)
Pin hole diameter0.064\" (1.63mm)
Accepts pin diameter0.032\" ~ 0.046\" (0.81mm ~ 1.17mm)
Contact finish thickness30.0µin (0.76µm)
