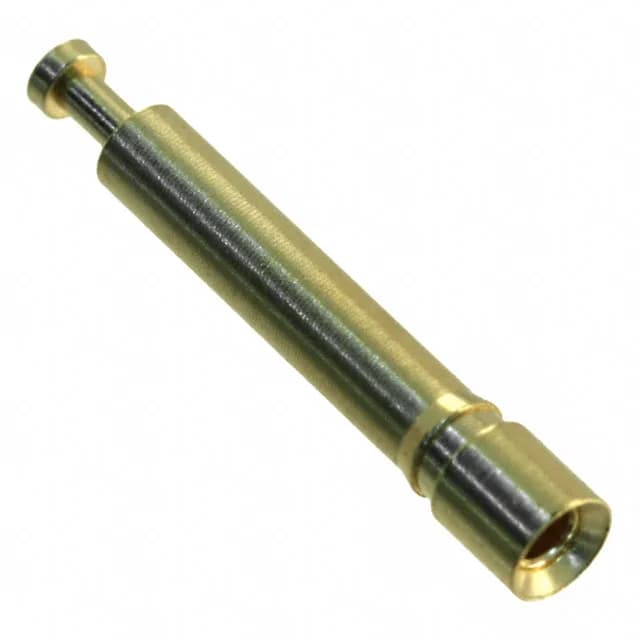

Mill-Max Manufacturing Corp. 0325-0-15-15-34-27-10-0
MPN0325-0-15-15-34-27-10-0
Active
CONN PIN RCPT .032-.046 PRESSFIT
$1.1900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series0325
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 0325 |
| Tail type | Turret |
| Mounting hole diameter | 0.090\" (2.29mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.495\" (12.57mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Press-Fit |
| Contact finish | Gold |
| Flange diameter | 0.102\" (2.59mm) |
| Length - overall | 0.630\" (16.00mm) |
| Pin hole diameter | 0.064\" (1.63mm) |
| Accepts pin diameter | 0.032\" ~ 0.046\" (0.81mm ~ 1.17mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
