Mill-Max Manufacturing Corp. 0326-2-19-15-06-27-10-0
MPN0326-2-19-15-06-27-10-0
Active

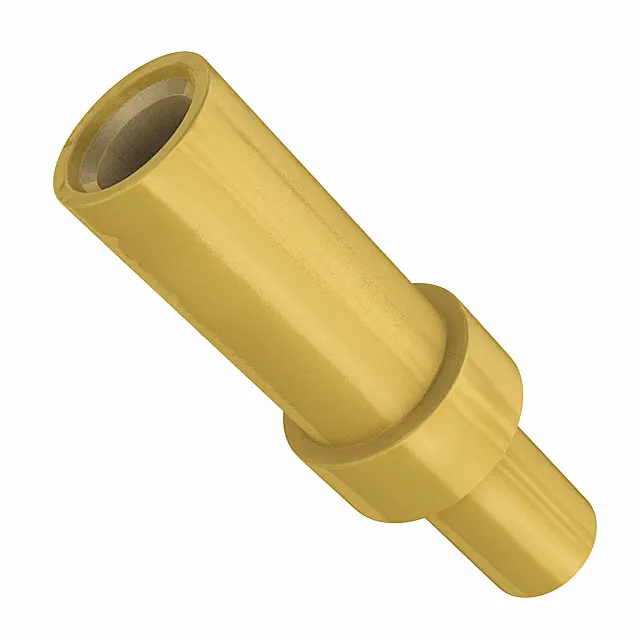

CONN PIN RCPT .022-.032 SWAGE
$0.69Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series0326
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 0326 |
| Tail type | No Tail |
| Mounting hole diameter | 0.060\" (1.52mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.170\" (4.32mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Swage |
| Contact finish | Gold |
| Board thickness | 0.062\" (1.57mm) |
| Flange diameter | 0.094\" (2.39mm) |
| Length - overall | 0.294\" (7.47mm) |
| Pin hole diameter | 0.051\" (1.30mm) |
| Accepts pin diameter | 0.022\" ~ 0.032\" (0.56mm ~ 0.81mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
