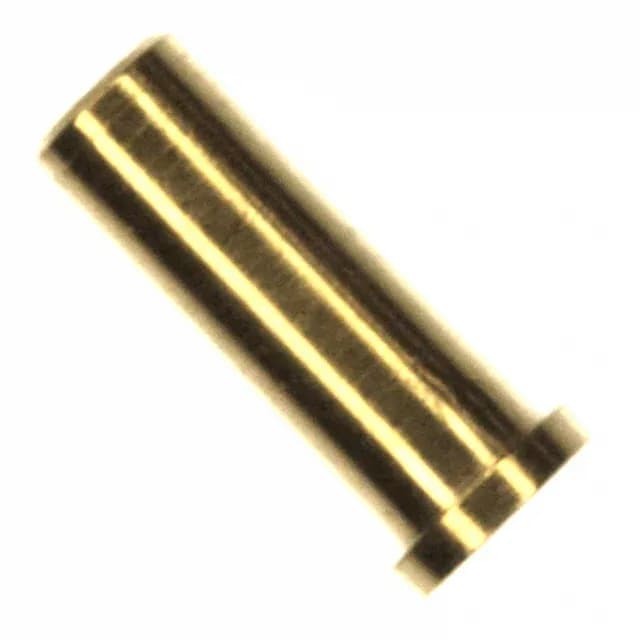

Mill-Max 0329 series pin socket, order code 0329-0-15-15-34-27-10-0, accepts 0.032"~0.046" pin diameter, gold-plated beryllium copper contact, solder termination, no tail, knockout bottom, bulk package.
| Parameter | Value |
|---|---|
| Series | 0329 |
| Tail type | No Tail |
| Mounting hole diameter | 0.075\" (1.91mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.221\" (5.61mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Features | Knockout Bottom |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.090\" (2.29mm) |
| Length - overall | 0.221\" (5.61mm) |
| Pin hole diameter | 0.064\" (1.63mm) |
| Accepts pin diameter | 0.032\" ~ 0.046\" (0.81mm ~ 1.17mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
The 0329-0-15-15-34-27-10-0 is a Mill-Max 0329 series pin socket accepting pin diameters from 0.032" to 0.046" (0.81mm~1.17mm). The beryllium copper contact with 30.0µin gold finish handles the -55°C~125°C range, and the knockout-bottom feature allows solder-flux drainage during wave soldering.
RoHS3 compliant per.
