Press-fit pin socket for 0.032"–0.046" pins
The 0334-0-15-15-34-27-10-0 is a Mill-Max 0334 series PCB pin socket with a press-fit hex termination and no tail — it accepts pin diameters from 0.032" to 0.046" (0.81mm to 1.17mm).

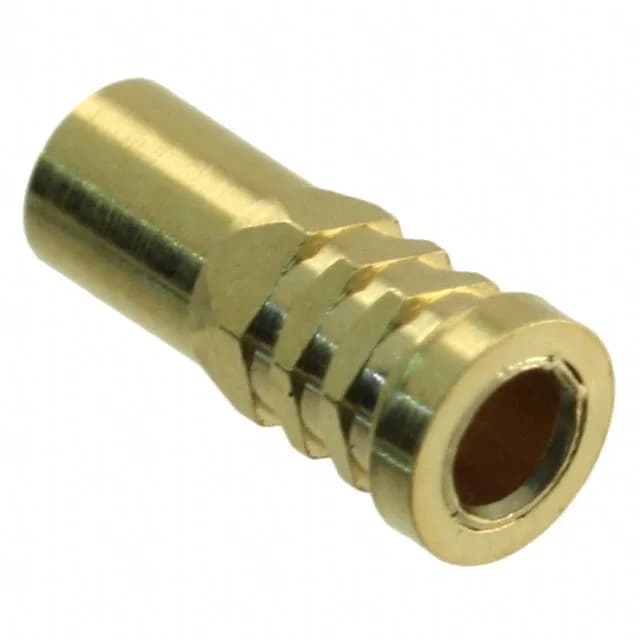

Mill-Max 0334-0-15-15-34-27-10-0 PCB Pin Socket, Press-Fit
MPN0334-0-15-15-34-27-10-0
Active
Mill-Max 0334 series PCB pin socket, order code 0334-0-15-15-34-27-10-0, accepts 0.032"~0.046" pin diameter, press-fit hex termination, gold-plated beryllium copper contact, no tail, 0.206" socket depth, -55°C~125°C, Bulk.
$0.6200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series0334
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 0334 |
| Tail type | No Tail |
| Mounting hole diameter | 0.079\" (2.01mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.206\" (5.23mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Press-Fit, Hex |
| Contact finish | Gold |
| Flange diameter | 0.091\" (2.31mm) |
| Length - overall | 0.206\" (5.23mm) |
| Pin hole diameter | 0.064\" (1.63mm) |
| Accepts pin diameter | 0.032\" ~ 0.046\" (0.81mm ~ 1.17mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
Product details
Frequently asked questions
Who supplies the 0334-0-15-15-34-27-10-0 and how is it quoted for volume?
Mill-Max Manufacturing Corp. supplies the 0334-0-15-15-34-27-10-0 under the 0334 series.
