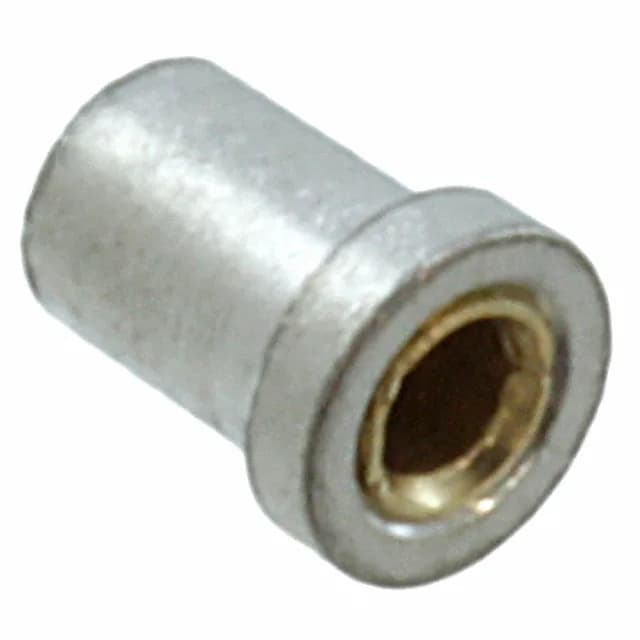

Mill-Max 0337 series PCB pin socket, order code 0337-0-67-80-15-27-10-0, accepts pin diameter 0.020" ~ 0.032" (0.51mm ~ 0.81mm), gold-plated beryllium copper contact, no tail, solder termination, knockout bottom with Organic Fiber Plug®.
| Parameter | Value |
|---|---|
| Series | 0337 |
| Tail type | No Tail |
| Mounting hole diameter | 0.066\" (1.68mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.100\" (2.54mm) |
| Contact material | Beryllium Copper |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Knockout Bottom (Organic Fiber Plug®) |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.078\" (1.98mm) |
| Length - overall | 0.100\" (2.54mm) |
| Pin hole diameter | 0.064\" (1.63mm) |
| Accepts pin diameter | 0.020\" ~ 0.032\" (0.51mm ~ 0.81mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
The 0337-0-67-80-15-27-10-0 is a Mill-Max 0337 series PCB pin socket with a knockout bottom feature using an Organic Fiber Plug®. The beryllium copper contact carries a 30.0µin gold finish and accepts pin diameters from 0.020" to 0.032" (0.51mm to 0.81mm). Operating temperature range is -55°C to 125°C.
