Gold-plated beryllium copper pin socket, 0.200" socket depth
The 0340-0-15-15-34-27-10-0 is a no-tail PCB pin socket from Mill-Max's 0340 series, designed to accept pin diameters from 0.032" to 0.046".

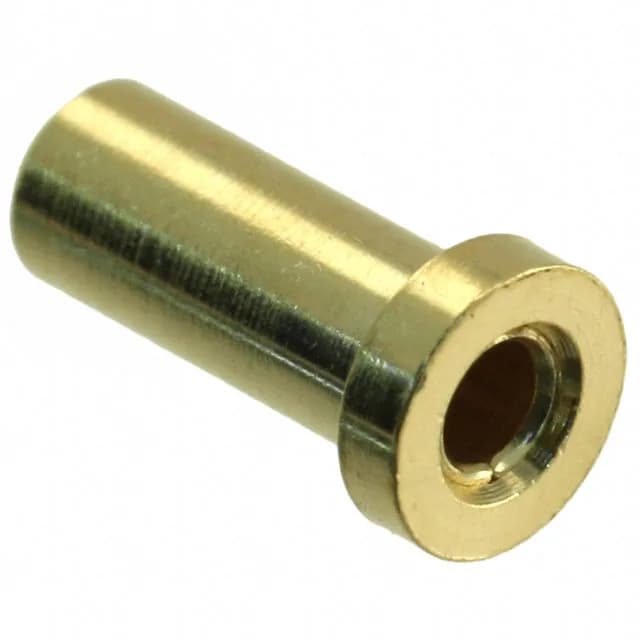

Mill-Max 0340-0-15-15-34-27-10-0 PCB Pin Socket, Gold
MPN0340-0-15-15-34-27-10-0
Active
Mill-Max 0340 series PCB pin socket, order code 0340-0-15-15-34-27-10-0, no tail, solder termination, gold-plated beryllium copper contact, accepts 0.032"~0.046" pin diameter, 30.0µin gold, -55°C~125°C, Bulk.
$0.6600Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series0340
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 0340 |
| Tail type | No Tail |
| Mounting hole diameter | 0.087\" (2.21mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.200\" (5.08mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.120\" (3.05mm) |
| Length - overall | 0.240\" (6.10mm) |
| Pin hole diameter | 0.064\" (1.63mm) |
| Accepts pin diameter | 0.032\" ~ 0.046\" (0.81mm ~ 1.17mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
