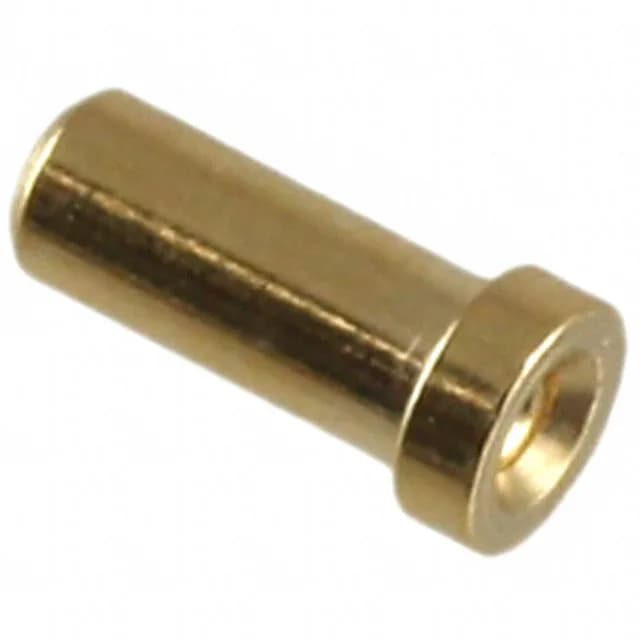

Mill-Max 0341 series pin receptacle, order code 0341-0-15-15-30-27-10-0, accepts 0.015"~0.025" pin diameter, 0.200" socket depth, gold-plated beryllium copper contact, solder termination, 30.0µin gold, -55°C~125°C.
| Parameter | Value |
|---|---|
| Series | 0341 |
| Tail type | No Tail |
| Mounting hole diameter | 0.073\" (1.85mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.200\" (5.08mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.093\" (2.36mm) |
| Length - overall | 0.200\" (5.08mm) |
| Pin hole diameter | 0.043\" (1.09mm) |
| Accepts pin diameter | 0.015\" ~ 0.025\" (0.38mm ~ 0.64mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
The 0341-0-15-15-30-27-10-0 is a solder-terminated pin receptacle from the Mill-Max 0341 series, designed to accept pin diameters from 0.015" to 0.025" (0.38mm to 0.64mm). The beryllium copper contact carries 30.0µin gold plating and operates from -55°C to 125°C.
The receptacle accepts pin diameters from 0.015" to 0.025" (0.38mm to 0.64mm).
