Pin receptacle for 0.032" to 0.046" pins

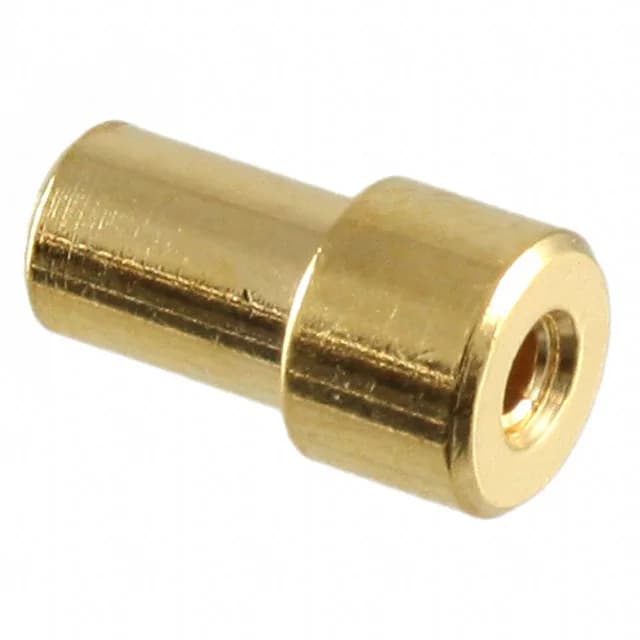

The 0347-0-15-15-34-27-10-0 is a single-circuit PCB pin receptacle from Mill-Max's 0347 series, accepting pin diameters from 0.032" to 0.046" (0.81mm to 1.17mm). The beryllium copper contact carries 30.0µin gold plating, rated for solder termination with a 0.250" socket depth and 0.288" overall length.
Mounting hole and flange fit
The receptacle requires a 0.120" (3.05mm) mounting hole and presents a 0.157" (3.99mm) flange diameter — the pin hole diameter is 0.064" (1.63mm), so the socket body sits flush in the board while the pin enters the centre bore.
