Mill-Max 0370 series PCB pin socket, order code 0370-0-19-01-07-27-10-0, accepts 0.065"~0.082" pin diameter, gold-plated beryllium copper contact, solder termination, 0.375" socket depth, -55°C to 125°C, Bulk package.
| Parameter | Value |
|---|---|
| Series | 0370 |
| Tail type | Crimp |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.375\" (9.53mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.144\" (3.66mm) |
| Length - overall | 0.690\" (17.53mm) |
| Pin hole diameter | 0.107\" (2.72mm) |
| Accepts pin diameter | 0.065\" ~ 0.082\" (1.65mm ~ 2.08mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
The 0370-0-19-01-07-27-10-0 is a Mill-Max 0370 series PCB pin socket that accepts pins from 0.065" to 0.082" diameter. The beryllium copper contact carries 30.0µin gold plating, and the socket terminates via solder with a crimp tail.

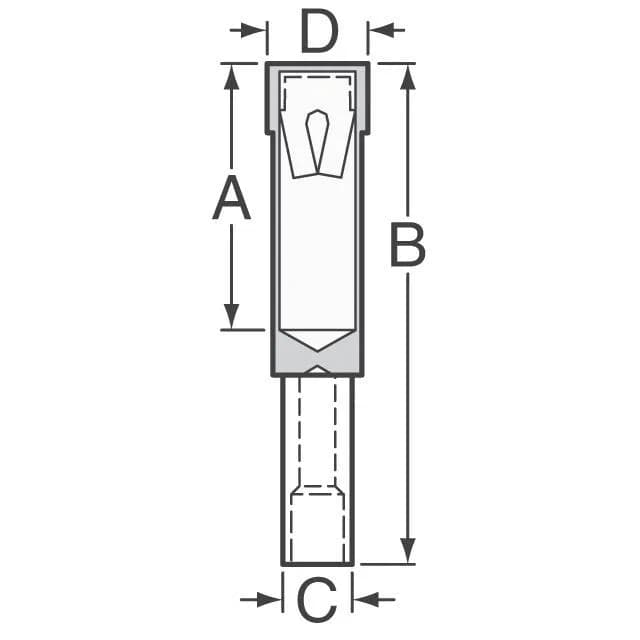

Overall length is 0.690", socket depth 0.375", flange diameter 0.144", and pin hole diameter 0.107". Operating temperature spans -55°C to 125°C.
The part is ROHS3 Compliant.
