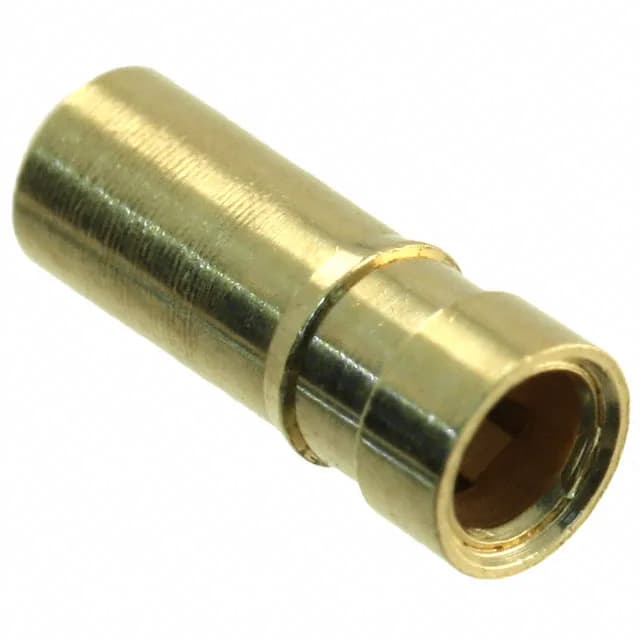

Mill-Max Manufacturing Corp. 0381-0-15-15-23-27-10-0
MPN0381-0-15-15-23-27-10-0
Active
CONN PIN RCPT .045-.065 PRESSFIT
$0.8400Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series0381
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 0381 |
| Tail type | No Tail |
| Mounting hole diameter | 0.104\" (2.64mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.255\" (6.48mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Press-Fit |
| Contact finish | Gold |
| Flange diameter | 0.110\" (2.79mm) |
| Length - overall | 0.290\" (7.37mm) |
| Pin hole diameter | 0.088\" (2.24mm) |
| Accepts pin diameter | 0.045\" ~ 0.065\" (1.14mm ~ 1.65mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
