Mill-Max Manufacturing Corp. 0436-0-15-01-03-27-10-0 — PCB Pin Sockets

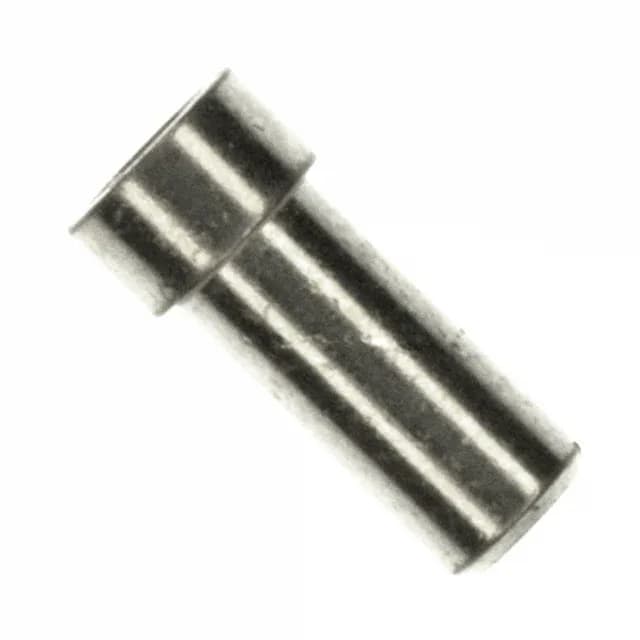

Mill-Max Manufacturing Corp. 0436-0-15-01-03-27-10-0

MPN0436-0-15-01-03-27-10-0
Active

CONN PIN RCPT .040-.060 SOLDER

$1.7300Ref. price · indicative, final on quote
Mill-Max Manufacturing Corp. 0436-0-15-01-03-27-10-0 datasheet (PDF)
RoHSROHS3 Compliant
Series0436
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

0436-0-15-01-03-27-10-0 specifications
ParameterValue
Series0436
Tail typeNo Tail
Mounting hole diameter0.102\" (2.59mm)
Operating temperature-55°C ~ 125°C
Socket depth0.255\" (6.48mm)
Contact materialBeryllium Copper
PackageBulk
TerminationSolder
Contact finishGold
Flange diameter0.118\" (3.00mm)
Length - overall0.290\" (7.37mm)
Pin hole diameter0.078\" (1.98mm)
Accepts pin diameter0.040\" ~ 0.060\" (1.02mm ~ 1.52mm)
Contact finish thickness30.0µin (0.76µm)
