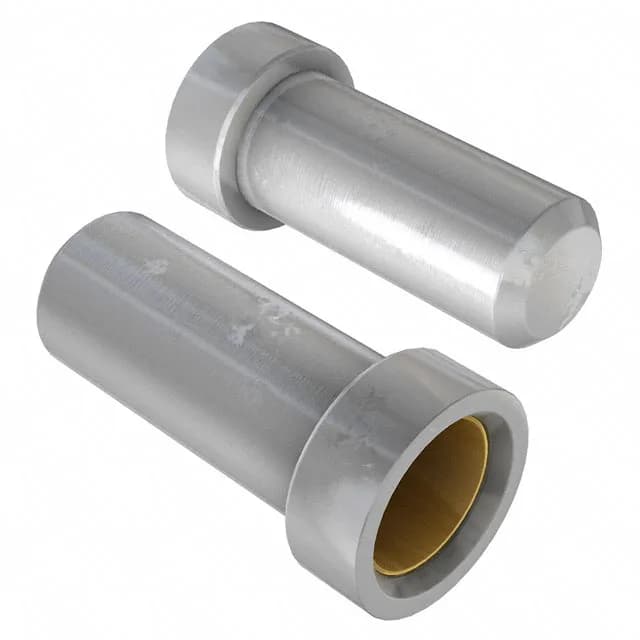

Mill-Max 0507 series pin receptacle, order code 0507-0-15-15-31-27-10-0, accepts 0.018"~0.024" pin diameter, gold-plated beryllium copper contact, 30.0µin gold finish, solder termination, no tail, bulk package.
| Parameter | Value |
|---|---|
| Series | 0507 |
| Tail type | No Tail |
| Mounting hole diameter | 0.042\" (1.07mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.073\" (1.85mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.052\" (1.32mm) |
| Length - overall | 0.090\" (2.29mm) |
| Accepts pin diameter | 0.018\" ~ 0.024\" (0.46mm ~ 0.60mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
The 0507-0-15-15-31-27-10-0 is a Mill-Max 0507 series pin receptacle accepting pin diameters from 0.018" to 0.024" (0.46mm to 0.60mm). The contact is beryllium copper with 30.0µin gold plating, solder termination, and a socket depth of 0.073" (1.85mm).
