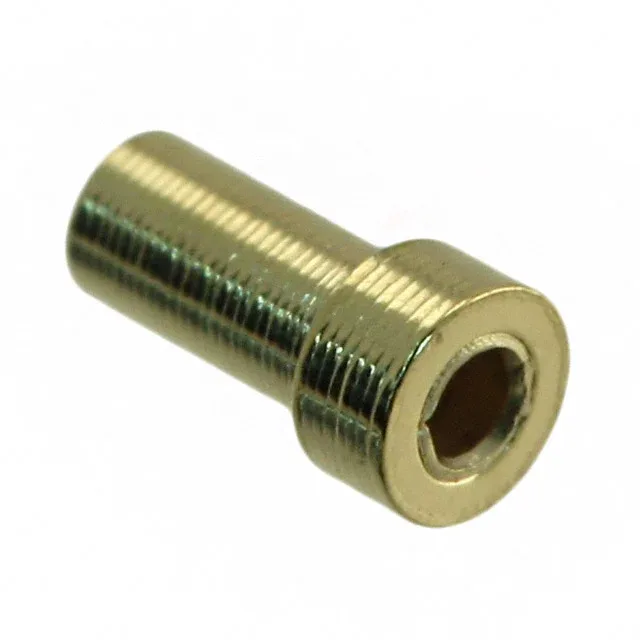

Mill-Max Manufacturing Corp. 0550-0-15-15-22-27-10-0

Mill-Max Manufacturing Corp. 0550-0-15-15-22-27-10-0

MPN0550-0-15-15-22-27-10-0
Active

CONN PIN RCPT .015-.022 SOLDER

$0.31Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series0550
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026

Specifications

0550-0-15-15-22-27-10-0 specifications
ParameterValue
Series0550
Tail typeNo Tail
Mounting hole diameter0.052\" (1.32mm)
Operating temperature-55°C ~ 125°C
Socket depth0.120\" (3.05mm)
Contact materialBeryllium Copper
PackageBulk
TerminationSolder
Contact finishGold
Flange diameter0.072\" (1.83mm)
Length - overall0.140\" (3.56mm)
Pin hole diameter0.043\" (1.09mm)
Accepts pin diameter0.015\" ~ 0.022\" (0.38mm ~ 0.56mm)
Contact finish thickness30.0µin (0.76µm)
