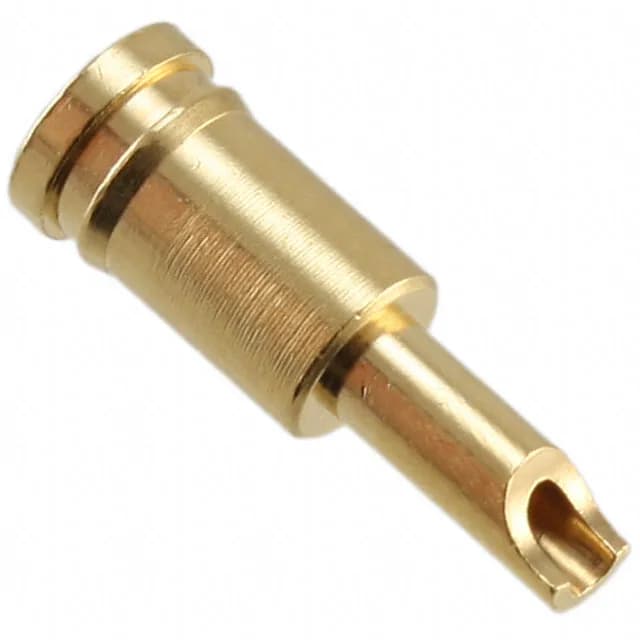

Mill-Max Manufacturing Corp. 0616-0-18-15-07-27-10-0
MPN0616-0-18-15-07-27-10-0
Active
CONN PIN RCPT .065-.082 PRESSFIT
$1.3900Ref. price · indicative, final on quote
RoHSROHS3 Compliant
Series0616
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 0616 |
| Tail type | Solder Cup |
| Mounting hole diameter | 0.144\" (3.66mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.220\" (5.59mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Press-Fit |
| Contact finish | Gold |
| Flange diameter | 0.157\" (3.99mm) |
| Length - overall | 0.455\" (11.56mm) |
| Pin hole diameter | 0.107\" (2.72mm) |
| Accepts pin diameter | 0.065\" ~ 0.082\" (1.65mm ~ 2.08mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
