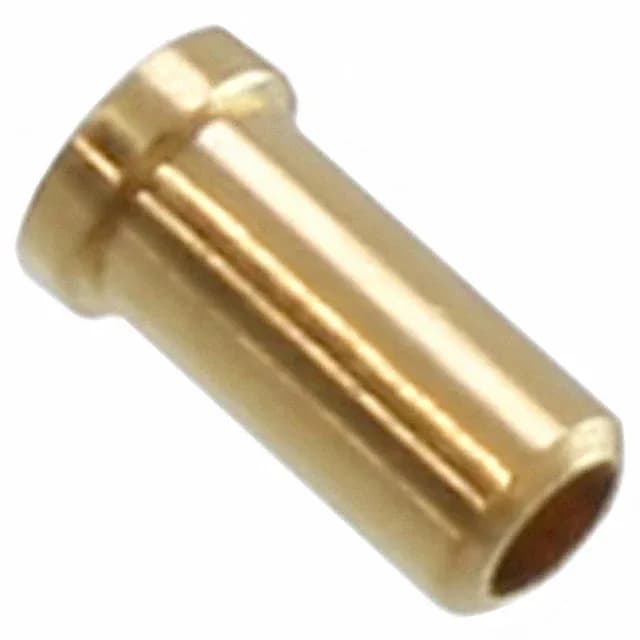

Mill-Max Manufacturing Corp. Series 0666 PCB pin receptacle, order code 0666-0-15-15-32-14-10-0, accepts 0.015" ~ 0.025" pin diameter, gold-plated beryllium copper contact, solder termination, no tail, bulk package.
| Parameter | Value |
|---|---|
| Series | 0666 |
| Tail type | No Tail |
| Mounting hole diameter | 0.064\" (1.63mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.138\" (3.51mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.075\" (1.91mm) |
| Length - overall | 0.138\" (3.51mm) |
| Pin hole diameter | 0.043\" (1.09mm) |
| Accepts pin diameter | 0.015\" ~ 0.025\" (0.38mm ~ 0.64mm) |
| Contact finish thickness | 10.0µin (0.25µm) |
The 0666-0-15-15-32-14-10-0 is a Mill-Max Series 0666 PCB pin receptacle that accepts pin diameters from 0.015" to 0.025" (0.38 mm to 0.64 mm). The contact is beryllium copper with 10.0 µin gold plating, rated for solder termination into a 0.064" (1.63 mm) mounting hole.
Socket depth is 0.138" (3.51 mm), matching the overall length — the part has no tail, so the full body sits flush with the board surface after soldering.
