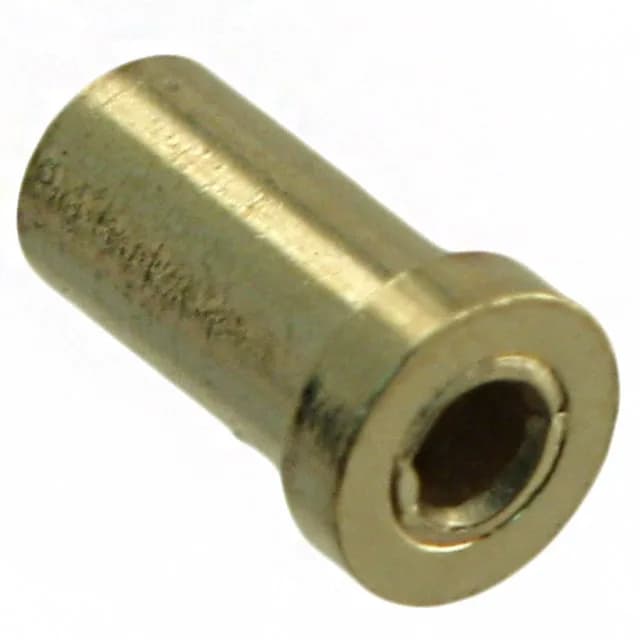

Mill-Max 0669 series PCB pin socket, order code 0669-0-15-15-30-27-10-0, 0.100" (2.54mm) socket depth, accepts 0.015" ~ 0.025" pin diameter, gold-plated beryllium copper contact, solder termination, no tail, bulk package.
| Parameter | Value |
|---|---|
| Series | 0669 |
| Tail type | No Tail |
| Mounting hole diameter | 0.060\" (1.52mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.100\" (2.54mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.072\" (1.83mm) |
| Length - overall | 0.125\" (3.18mm) |
| Pin hole diameter | 0.043\" (1.09mm) |
| Accepts pin diameter | 0.015\" ~ 0.025\" (0.38mm ~ 0.64mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
The 0669-0-15-15-30-27-10-0 is a solder-terminated PCB pin socket from Mill-Max's 0669 series, accepting pin diameters from 0.015" to 0.025" (0.38mm to 0.64mm) into a 0.100" (2.54mm) deep socket. No tail — solder termination is at the socket body.
Socket depth is 0.100" (2.54mm). Accepted pin diameter range is 0.015" to 0.025" (0.38mm to 0.64mm).
