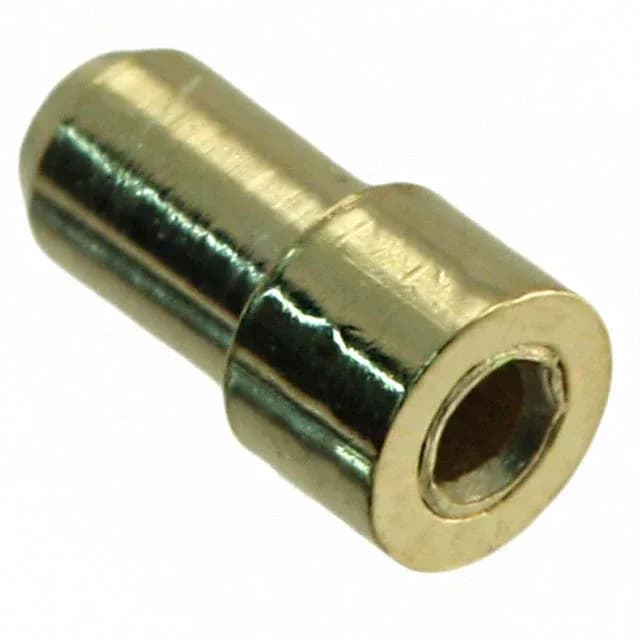

Mill-Max Manufacturing Corp. 0670 series PCB pin socket, order code 0670-0-15-15-30-27-10-0, accepts 0.015" ~ 0.025" pin diameter, 30.0µin gold contact finish, beryllium copper contact, no tail, solder termination, bulk package.
| Parameter | Value |
|---|---|
| Series | 0670 |
| Tail type | No Tail |
| Mounting hole diameter | 0.060\" (1.52mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.113\" (2.87mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.072\" (1.83mm) |
| Length - overall | 0.135\" (3.43mm) |
| Pin hole diameter | 0.043\" (1.09mm) |
| Accepts pin diameter | 0.015\" ~ 0.025\" (0.38mm ~ 0.64mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
The 0670-0-15-15-30-27-10-0 is a press-fit PCB pin receptacle from Mill-Max's 0670 series, designed to accept pin diameters from 0.015" to 0.025" (0.38mm to 0.64mm). It terminates via solder into a 0.060" (1.52mm) mounting hole, with a socket depth of 0.113" (2.87mm) and an overall length of 0.135" (3.43mm).
