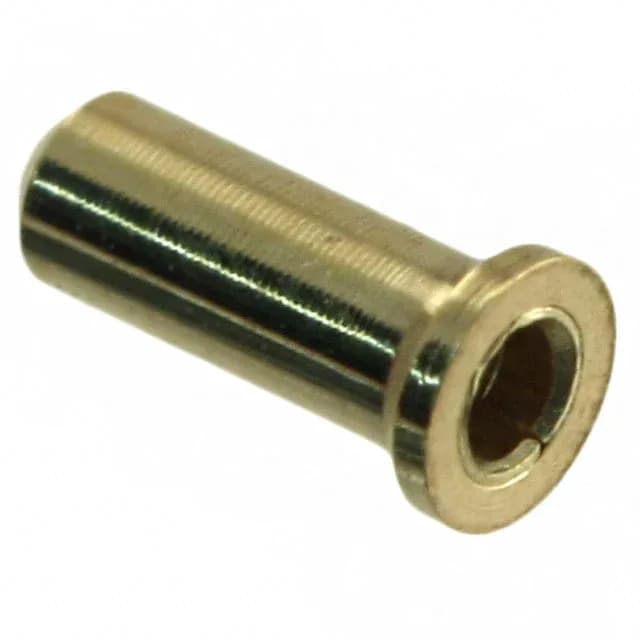

Mill-Max Manufacturing Corp. 0680 series pin receptacle, order code 0680-0-15-15-32-27-10-0, accepts 0.015" ~ 0.025" pin diameter, gold-plated beryllium copper contact, solder termination, no tail, bulk package.
| Parameter | Value |
|---|---|
| Series | 0680 |
| Tail type | No Tail |
| Mounting hole diameter | 0.051\" (1.30mm) |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.120\" (3.05mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.068\" (1.73mm) |
| Length - overall | 0.138\" (3.51mm) |
| Pin hole diameter | 0.043\" (1.09mm) |
| Accepts pin diameter | 0.015\" ~ 0.025\" (0.38mm ~ 0.64mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
The 0680-0-15-15-32-27-10-0 is a no-tail PCB pin socket from Mill-Max's 0680 series, accepting pin diameters from 0.015" to 0.025" (0.38mm to 0.64mm). The contact is beryllium copper with 30.0µin gold plating, rated for solder termination into a 0.051" mounting hole, with an operating range of -55°C to 125°C.
