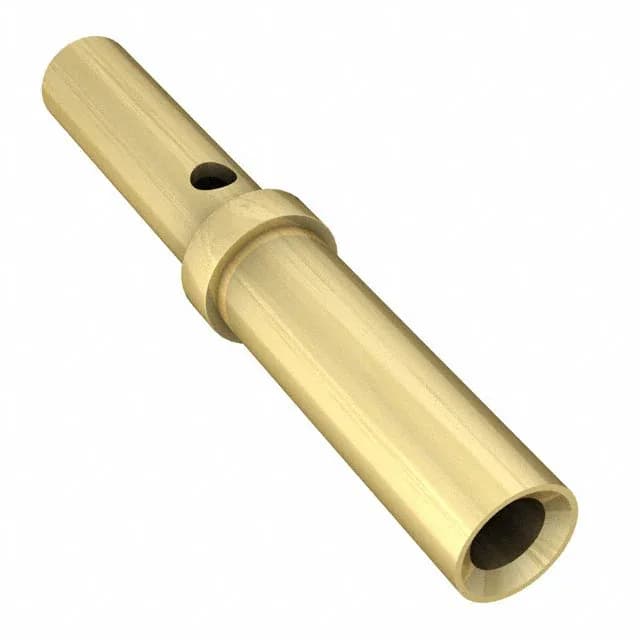

Mill-Max 0720 series PCB pin socket, order code 0720-0-33-15-34-27-10-0, accepts 0.032"~0.046" pin diameter, beryllium copper contact, 30.0µin gold plating, solder termination, 0.200" socket depth, bulk package.
| Parameter | Value |
|---|---|
| Series | 0720 |
| Tail type | Crimp |
| Operating temperature | -55°C ~ 125°C |
| Socket depth | 0.200\" (5.08mm) |
| Contact material | Beryllium Copper |
| Package | Bulk |
| Termination | Solder |
| Contact finish | Gold |
| Flange diameter | 0.093\" (2.36mm) |
| Length - overall | 0.518\" (13.16mm) |
| Pin hole diameter | 0.064\" (1.63mm) |
| Accepts pin diameter | 0.032\" ~ 0.046\" (0.81mm ~ 1.17mm) |
| Contact finish thickness | 30.0µin (0.76µm) |
The 0720-0-33-15-34-27-10-0 is a Mill-Max 0720 series PCB pin socket that accepts pin diameters from 0.032" to 0.046" (0.81mm to 1.17mm). The beryllium copper contact carries 30.0µin gold plating and terminates via solder, with a socket depth of 0.200" (5.08mm). Operating temperature range is -55°C to 125°C.
