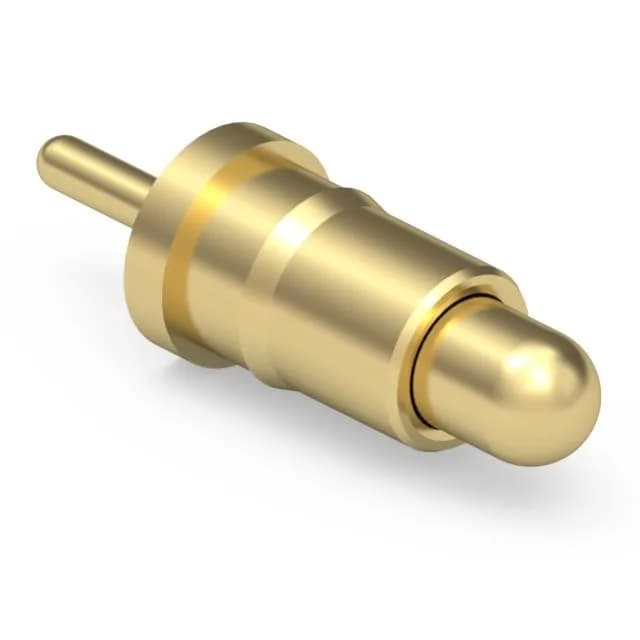

Mill-Max Manufacturing Corp. 0906-8-15-20-76-14-11-0
MPN0906-8-15-20-76-14-11-0
Active
$0.5900Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | 906 |
| Type | Sleeve & Plunger (Pogo Pins) |
| Mounting | Through Hole |
| Current rating | 5.2A |
| Operating temperature | -55°C ~ 125°C |
| Contact material | Brass Alloy |
| Pad layout dimension | Circular - 0.072\" (1.83mm) (TH) |
| Maximum working height | 0.155\" (3.94mm) |
| Minimum working height | 0.100\" (2.54mm) |
| Recommended working height | 0.128\" (3.24mm) |
| Package | Bulk |
| Plunger size | 0.042\" (1.07mm) Dia |
| Mating cycles | 1000000 |
| Contact finish | Gold |
| Contact finish thickness | 20.0µin (0.51µm) |
| Operating force - initial | 15gf |
| Operating force - mid compression | 60gf |
