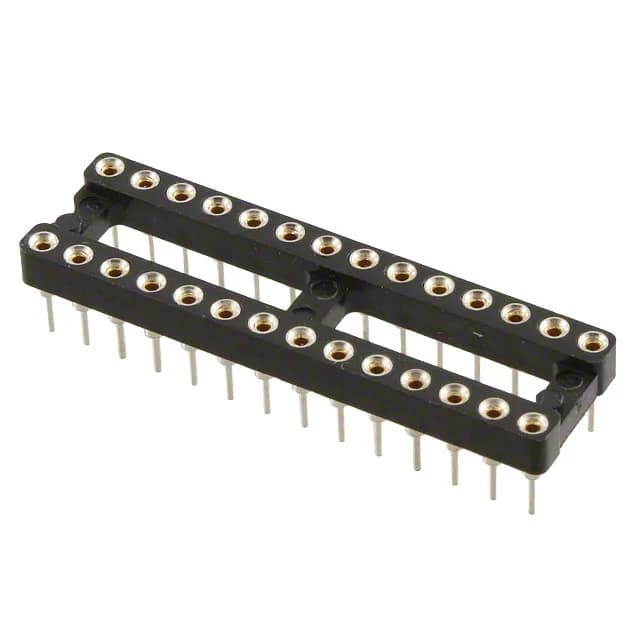

Mill-Max 110 series DIP socket, order code 110-13-328-41-001000, 28 positions (2 x 14), 0.100" (2.54mm) pitch, 0.3" (7.62mm) row spacing, 3 A, gold-plated mating contacts, through-hole, solder termination, open frame, tube package.
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 110 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Brass Alloy |
| Contact material - mating | Beryllium Copper |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 10.0µin (0.25µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
| Number of positions or pins | 28 (2 x 14) |
The 110-13-328-41-001000 is a 28-position (2 x 14) DIP socket from Mill-Max's 110 series, using the standard 0.300" (7.62mm) row spacing and 0.100" (2.54mm) pitch for legacy dual-in-line ICs. Gold-plated mating contacts on beryllium copper springs rated 3 A, with an open-frame PCT housing rated for -55°C to 125°C operating range.
Gold finish on mating contacts, 30.0µin (0.76µm) thickness over beryllium copper. Post contacts are gold with 10.0µin (0.25µm) thickness on brass alloy.
The 110 series includes multiple position counts at the same 0.100" pitch and 0.300" row spacing. No direct same-series alternative is listed as a cross-reference; selection is by position count matching the IC lead count.
