Mill-Max Manufacturing Corp. Series 110 DIP socket, order code 110-13-628-41-801000, 28 positions, 0.100" (2.54mm) pitch, 3 A, gold mating contacts, through-hole solder termination, open frame with decoupling capacitor.
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | 110 |
| Mounting | Through Hole |
| Current rating | 3 A |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Brass Alloy |
| Contact material - mating | Beryllium Copper |
| Package | Tube |
| Features | Open Frame, Decoupling Capacitor |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 10.0µin (0.25µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
| Number of positions or pins | 28 (2 x 14) |

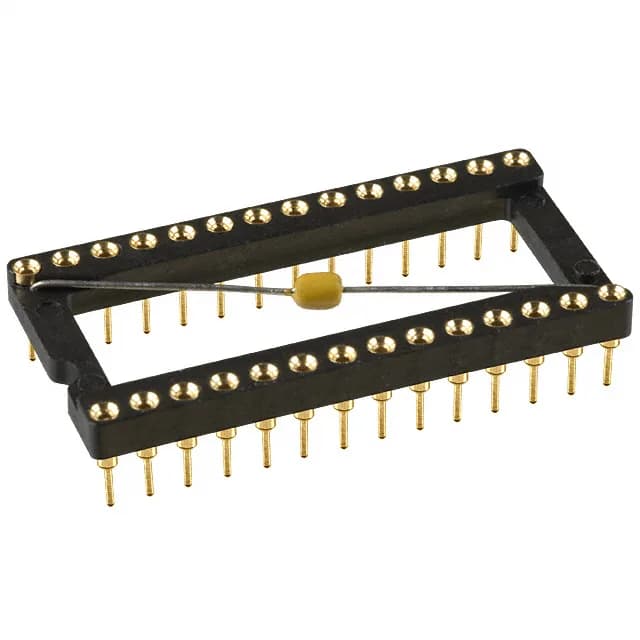

The 110-13-628-41-801000 is a 28-position DIP socket from Mill-Max's Series 110, arranged in a 2 x 14 grid with 0.600" (15.24 mm) row spacing. Gold-plated beryllium copper mating contacts rated 3 A per position; the open-frame housing includes an integrated decoupling capacitor.
